1 by 10 6G HDMI Splitter - Cypress CPLUS-V10E

1 by 10 6G HDMI Splitter - Cypress CPLUS-V10E

Artikelnummer: CPLUS-V10E
HAN: CPLUS-V10E
Kategorie: Splitters
Hersteller: Cypress Technology

The 1 by 10 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to 10 HDMI outputs. It provide ...

525,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

The 1 by 10 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to 10 HDMI outputs. It provides high performance audio and video output up to 4K2K@60Hz (YUV444) resolution and is capable of provide high end of audio and video performance. This unit also support HDR (High Dynamic Range Imaging) function, which allows giving more luminance radiance contrasting and colourful pictures for better experience. It supports high resolution digital audio formats such as LPCM 7.1CH, Bitstream, HD Bitstream, audio sampling rate up to 192kHz. There are input and outputs indications on panel, which will illuminate when detected, system reset function allows the unit to set the TV to it’s default HDMI input.

4Kx2K 6G supported
System Reset function supported (CEC active source command

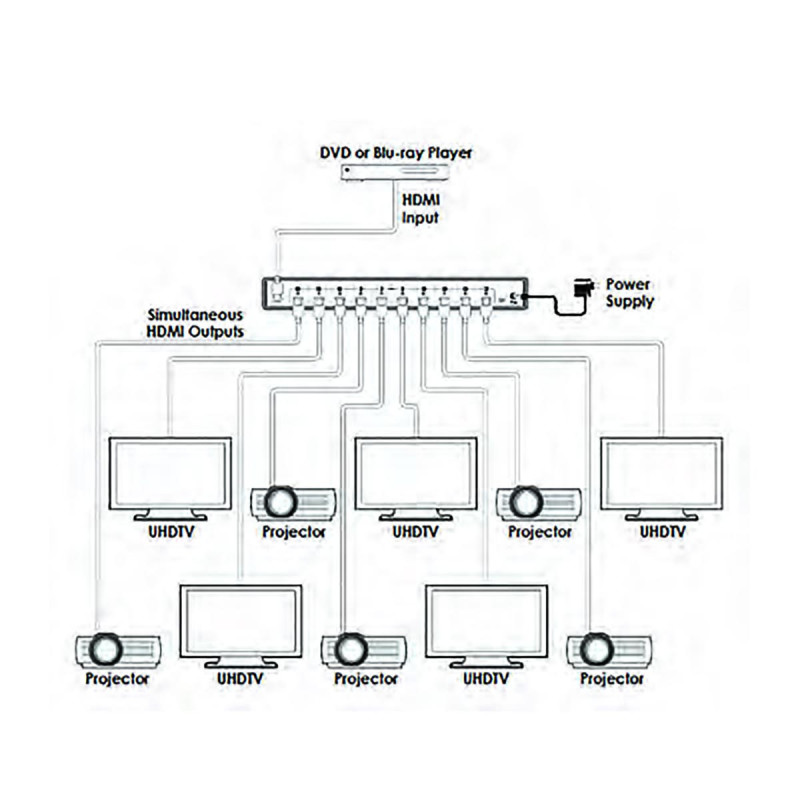

Displays any of 1 Ultra High-Definition sources on 10 UHDTV displays simultaneously
3D pass-Through
Supports LPCM 8CH, Bitstream, HD Bitstream
Input port EDID support Standard (1080p and PCM 2 channel) and TV mode Note: When displaying HDMI 4Kx2K signal, equivalent source signal, output display and HDMI cables are required in order to secure the best image display.
HDR Pass Through supported. Note: To active HDR function, input source and output device should also equip and support HDR function.

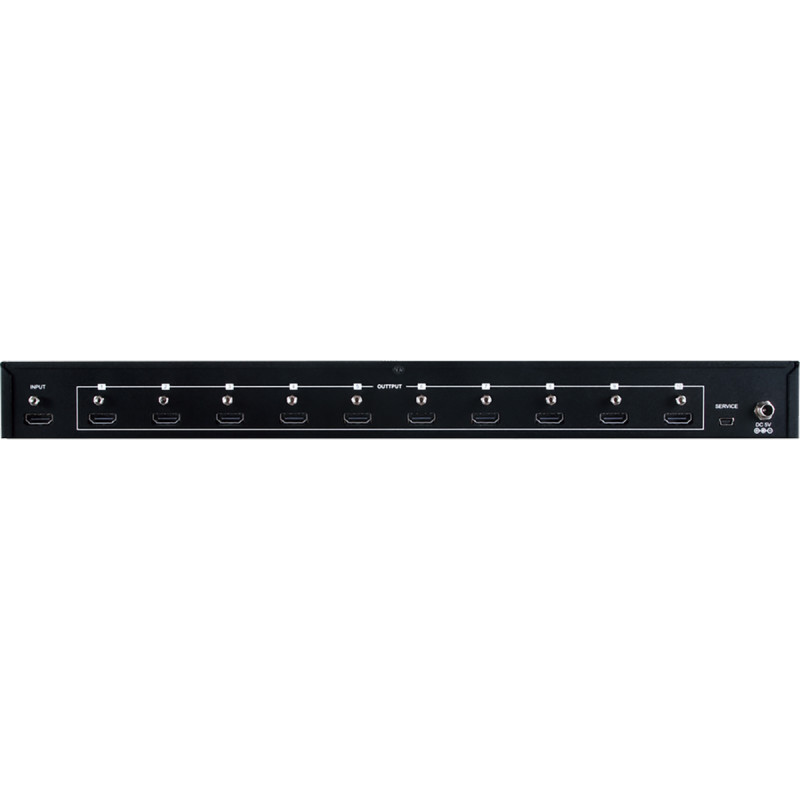

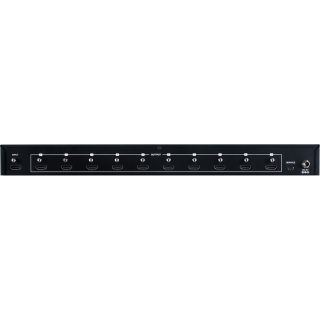

Interfaces
Input Port	1 HDMI (Type A)
Output Port	10 HDMI (Type A)
Control I/O	USB(Mini B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0))
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:4:4
Output Saignal Type	4K@60 YUV 4:4:4

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Audio
	HDMI	LPCM(8CH), Bitstream, HD Bitstream

Power
Power Supply	5V/6A DC
Power Consumption	11,38w

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	436 mm × 44 mm × 160 mm [Case Only] 436 mm × 48 mm × 165.5 mm [All Inclusive]
Weight	1964 g

Field Firmware Update
Interface	PC

Ordering Information
Model No.	Product Description
CPLUS-V10E	1 by 10 6G HDMI Splitter
