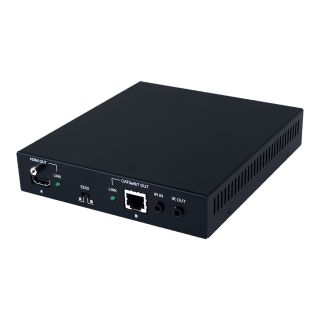

1 by 2 CAT5e/6/7 over HDMI & CAT5e/6/7 with IR Splitter - Cypress CHDBX-1H1CPL

1 by 2 CAT5e/6/7 over HDMI & CAT5e/6/7 with IR Splitter - Cypress CHDBX-1H1CPL

Artikelnummer: CHDBX-1H1CPL
HAN: CHDBX-1H1CPL
Kategorie: Splitters
Hersteller: Cypress Technology

The CAT5e/6/7 over HDMI and CAT5e/6/7 Splitter can convert a single CAT5e/6/7 input and 2-way IR control to a single CAT5e/6/7 o ...

518,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The CAT5e/6/7 over HDMI and CAT5e/6/7 Splitter can convert a single CAT5e/6/7 input and 2-way IR control to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD). The HDMI output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 60 meters.

HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
Simultaneous HDMI and CAT5e/6/7 outputs
Supports data rate from 250Mbps up to 3Gbps
Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@24/25/30Hz, 4096x2160@24Hz and 4K2K@60 YUV_420)
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate)
Supports distances up to 60 meters through CAT5e/6/7 cables
Can select EDID
Supports USB service port
Supports control of devices via 2-way IR
The 3D signal display follow by display TV’s EDID

Video Bandwidth	340Mbps/10.2Gbps
Input ports	1 x CAT5e/6/7, 1 x IR IN, 1 x USB (Service only)
Output ports	1 x HDMI, 1 x CAT5e/6/7 1 x IR OUT,
Resolution	Up to 4Kx2K (3840x2160@24/25/30Hz/ 4096x2160@24Hz/4K2K@60Hz YUV_420)
HDMI Input & Output Cable Distance	Up to 10m@8 or12-bit 1080p
CAT5e/6/7 Output Cable Distance	Up to 60m
IR Frequency	30~50kHz
Power Supply	24V / 1.25A DC (US/EU standards, CE/FCC/ UL certified)
Dimensions	145 mm(W) x 160 mm(D) x 30 mm(H)/ Jacks Excluded 45 mm(W) x 172.75 mm(D) x 35 mm(H)/ Jacks Included
Weight	662g
Chassis Material	Metal
Silkscreen Color	Black
ESD Protection	Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Operating Temperature	0°C ~ 40°C
Storage Temperature	-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity	20 ~ 90% RH (non-condensing)
Power Consumption	22.33W/with Receiver connected
