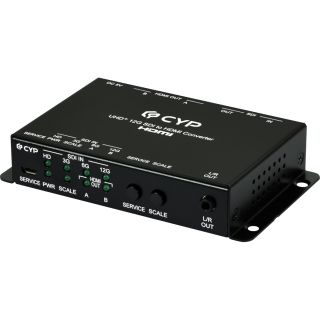

12G-SDI to HDMI Converter - Cypress CPLUS-SDI2H

12G-SDI to HDMI Converter - Cypress CPLUS-SDI2H

Artikelnummer: CPLUS-SDI2H
Kategorie: Format Converters
Hersteller: Cypress Technology

The SDI to HDMI Converter allows SD, HD, 3G and 12G-SDI signals to be shown on HDMI display. This means that it is now easier fo ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The SDI to HDMI Converter allows SD, HD, 3G and 12G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. Furthermore, thanks to L/R audio outputs users can output audio in analog formats while the loop-through 12G-SDI design benefits users by letting them simultaneously show content on both SDI and HDMI displays.

Supports SDI output distance up to 60 meters (12G-SDI), 80 meters (6G-SDI) 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Note:

1. Tested with Belden 1694A Cable. Operating distances may vary if used with cables of different specifications.

2. This product does not process HDCP encrypted input signals. There will be no video output when the input signal contains content that is HDCP encrypted.

Integrated audio embedded up to 8 CH PCM 48 kHz for HDMI or 2 CH (external L/R) for DVI audio
Support SDI signal re-timing Cable Driver

Interfaces

Input Port

1 12G-SDI (BNC)

Output Port

1 12G-SDI(BNC)

2 HDMI(Type-A)

1 Unbalanced Stereo (3.5mm)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	Not Supported
Input Signal Types	4K@60 8bit 4:4:4
Output Signal Types	4K@60 8bit 4:4:4
		Resolutions
Maximum Input	SDI	4096×2160p@60 (YUV 4:2:2)
Maximum Output	HDMI	4096×2160p@60 (YUV 4:2:2)
	SDI	4096×2160p@60 (YUV 4:2:2)

Power
Power Supply	5V/2.6A DC (Locking)
Power Consumption	TBD (Full Load)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×83mm [Case Only] 128mm×25mm×TBDmm [All Inclusive]
Weight	347g

Field Firmware Update
USB

ORDERING INFORMATION
Model No.	Product Description
CPLUS-SDI2H	12G-SDI to HDMI Converter
CPLUS-H2SDI	HDMI to 12G-SDI Converter
CPLUS-SDI2H-W	12G-SDI to HDMI Converter
CPLUS-H2SDI-W	HDMI to 12G-SDI Converter
