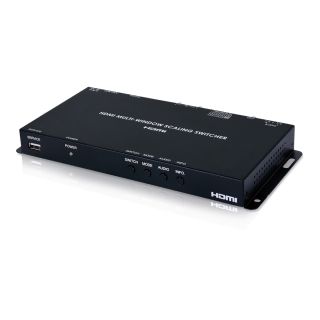

2×1 HDMI Multiviewer - Cypress CLUX-2HPIP

2×1 HDMI Multiviewer - Cypress CLUX-2HPIP

Artikelnummer: CLUX-2HPIP
HAN: CLUX-2HPIP
Kategorie: Scaler
Hersteller: Cypress Technology

This HDMI Multiviewer is capable of scaling up to 2 sources and displaying both simultaneously on a single HDMI output within th ...

466,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI Multiviewer is capable of scaling up to 2 sources and displaying both simultaneously on a single HDMI output within their own windows. This is the ideal solution for monitoring multiple sources simultaneously for use in control rooms, or for flexible display presentations in conference rooms or classrooms. Both inputs support resolutions up to 1920×1200p@60Hz and LPCM audio with up to 8 channels at 192kHz. The multi-window output is sent to a single HDMI output at scaled resolutions up to 1920×1200@60Hz along with the selected audio source. The user can use their PC to generate images or text to be overlaid on top of a live HDMI input in real time. This unit can be controlled easily by use of the front panel controls (with OSD) as well as by WebGUI, Telnet, RS-232, IR, and 8 direct trigger inputs.

Inputs and output support HD resolutions up to 1080p60 and PC resolutions up to WUXGA (RB)
Supports audio pass-through of 7.1 channel LPCM sources via HDMI
Balanced analog stereo audio extraction support via 5-pin terminal block (LPCM 2.0 sources only)
Supports PiP (Picture-in-Picture), Side-by-Side, and free positioning window modes
Easy individual window size, position and layer priority adjustment
Supports per-window mirror, flip, swapped, and image freeze (w/ live audio) functionality
Chromakey and uploadable logo support
8 Trigger inputs for easy remote control of the unit with optional keypad

Interfaces
Input Port	2 HDMI (Type-A)
Output Port	1 HDMI (Type-A) 1 Balanced Stereo (5-pin Terminal Block)
Control I/O	1 RS-232 (DE-9) 1 Ethernet (RJ-45) 8 Triggers (10-pin Terminal Block)
Service Port	1 USB (Type-A)

Video
HDMI Compliance	1.3
HDCP Compliance	1.3
Input Signal Type	1080p60 12-bit
Output Signal Type	1080p60 12-bit
		Resolutions
Maximum Input	HDMI	1920×1080p@60 1920×1200p@60RB
Maximum Output	HDMI	1920×1080p@60 1920×1200p@60RB

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Line Out	2 Vrms S/N Ratio: > 110dB (1kHz with 0dBFS)

Power
Power Supply	5V/2.6A (Locking)
Power Consumption	5.1W (Full load)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mmx25mmx108mm [Case Only] 231.5mmx25mmx116mm [All Inclusive]
Weight	652g

Field Firmware Update
USB Flash Drive

ORDERING INFORMATION
Model No.	Product Description
CLUX-2HPIP	2×1 HDMI Multiviewer
