4-Port HDBT Input Card - Cypress CIN-4C

Artikelnummer: CIN-4C
HAN: CIN-4C
Kategorie: Matrixes
Hersteller: Cypress Technology

This 4-port HDBT Input Card provides 4 independent high-bandwidth HDBT inputs, paired with IR input and optical audio inputs whi ...

1.837,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

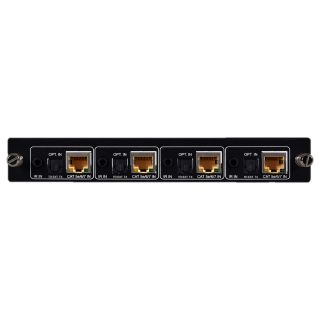

This 4-port HDBT Input Card provides 4 independent high-bandwidth HDBT inputs, paired with IR input and optical audio inputs which supports the Optical Audio Return (OAR) channel feature, found on compatible HDBaseT receivers, allowing optical audio sources connected to those receivers to be sent back to the matrix unit. Each grouping can be freely routed to any available output on the connected modular matrix.

4 HDBT input ports paired with IR input and optical audio input ports
Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color
Supports 12-bit Deep Color up to 1080p@60Hz
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Supports Optical Audio Return
This card’s features are controlled by the modular matrix

Interfaces
Input Port	4 HDBT (RJ-45) 4 Optical audio
Control I/O	4 IR Extender (3.5mm)

Video
HDMI Compliance	HDBT 4K@30
HDCP Compliance	2.X
Input Signal Type	4096x2160p@60 8bit YUV 4:2:0

Resolutions
Maximum Input	HDBT	4096×2160p@60 YUV 4:2:0

Audio
HDBT	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Optical In	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	187.4mm×29.1mm×344.9mm [Case Only] 197.5mm×29.1mm×364.6mm [All Inclusive]
Weight	458 g

Ordering Information
Model No.	Product Description
CH-1605RXV	UHD+ HDMI over HDBaseT Receiver with HDR/ARC
