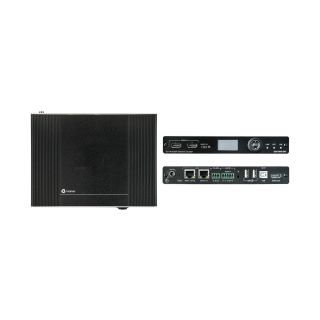

4K AVoIP Encoder Switcher with Dante over 1GbE

4K AVoIP Encoder Switcher with Dante over 1GbE

Artikelnummer: KRA-60-000890
EAN: 7291063096496
HAN: KDS-SW3-EN7
Kategorie: AV Streamers
Hersteller: Kramer

1.611,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

KDS−SW3−EN7 is an auto switcher and advanced encoder for streaming a selected video signal at 4K via Ethernet over copper cable in unicast (one−to−one) or multicast (one−to−many) configurations. It can add digital audio Dante, USB, IR, RS−232, or CEC signals.

KDS–SW3–EN7 provides exceptional quality, advanced user–friendly operation, and flexible control.
Instantaneous Switching Time — 1 second switching time between selectable video inputs.
Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface. While KDS–DEC7 decodes the stream to 4K@30Hz (4:4:4) resolution.
Streaming delay 33msec — for video 4K@30Hz 4:4:4 signal.
Streaming Support — Provides unicast and multicast streaming.
Flexible Analog Audio Embedding and De–embedding — Select balanced analog audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
Flexible Digital Audio Embedding and De–embedding Dante — Select digital audio as input to embed into the streaming and HDMI™ output signal, or as output to extract the HDMI audio signal and output it as balanced analog audio.
Easy To Use KM/KVM Support — Searchable, OSD menu for KM and fully configurable KVM roaming.
Power consumption without USB–C Power Delivery is 13W — power consumption with USB–C Power Delivery is 77W (requiring the optional power supply).
Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
PoE Support — Powered with PoE connection from PoE LAN switch.
Control Gateway — Through P3K or special TCP connection, users can control/communicate with IR, RS–232, or CEC to the connected devices.
Separate Service LAN Port — can be used for physical separation between AV and command streams to separate LAN for security and reliability purposes.
Selectable Inputs — 2 HDMI and 1 USB–C input.
Analog/Digital audio inputs and outputs.
Plug–and–play with Netgear M4250 AVoIP switches, Kramer Control, and KDS–USB2.

Eingang

Ausgang

Datenports

2 Ethernet: On R–J45 female connectors
1 Balanced Audio: On a 5–pin terminal block connector
1 RS-232: On a 3–pin terminal block connector
1 IR: On a 3.5mm TRS connector
1 USB-B Host: On a USB–B connector
2 USB-A Devices: On USB–A connectors

Network

Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
Unicast: Through RTSP (Real Time Streaming Protocol)
Bit Rate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

Video Streaming

Compression Standard: JPEG2K based, proprietary stream
Max Input Resolution: 4K@60hz (4:2:0)
Max Output Resolution: 4K@30hz (4:4:4)
Max End-to-End Resolution: 4K@30hz (4:4:4)
Scaler: Yes
End-to-End Latency: 33msec
Switching Time: 1sec

Resolution

4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,
3840x2160@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz,
1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz,
1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,
1856x1392@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz,
1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz,
1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz

Audio

Supported Formats: LPCM, Dolby and DTS
LPCM: LPCM upto 7.1/24–bit/192kHz
Dolby: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
DTS: DTS–HD Master Audio, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1
Dante Digital Audio: 2 IN or 2 OUT audio mono channels

Security

Bedienoberfläche

Indicators: LINK, NET and ON LEDs, front panel LCD Display
Rear Panel: Restart and factory reset button
Controls: Embedded web pages, P3K API commands via Ethernet, front panel navigation buttons

Energiebedarf

Umweltbedingungen

Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
Humidity: 10% to 90%, non–condensing

Einhaltung von Vorschriften (Einhaltung von Standards)

Gehäuse

Produktabmessung

18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H

Produktgewicht

Versandabmessung

31.20cm x 18.00cm x 7.60cm (12.28" x 7.09" x 2.99" ) W, D, H

Versandgewicht

Angaben zur Produktsicherheit

Herstellerinformationen:

Kramer Germany GmbH
Gladbacher Straße 17
Heinsberg, , 52525
info_de@kramerav.com
https://www.kramerav.com/de

Versandgewicht:	0,93 kg
