4K HDR HDMI Signal Generator & Analyzer (Portable) - Cypress CPHD-V4L-KIT

4K HDR HDMI Signal Generator & Analyzer (Portable) - Cypress CPHD-V4L-KIT

Artikelnummer: CPHD-V4L-KIT
Kategorie: Generator & Analyzer
Hersteller: Cypress Technology

This portable HDMI Signal Generator & Analyzer provides a convenient way to test and verify all aspects of an HDMI signal path, ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

This portable HDMI Signal Generator & Analyzer provides a convenient way to test and verify all aspects of an HDMI signal path, including source and sink. This unit complies with the HDMI 2.0a and HDCP 1.4/2.2 standards. The unit’s Analyzer mode complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.3 for EDID analysis.

The unit is powered by a single rechargeable Lithium-ion battery (not included). Beyond the Lithium-ion battery, the unit may also be powered (and the battery recharged) via the micro USB port. An external power bank can also be used to extend the portable service time. 4K sources can be scaled down to 1080p output in Analyzer mode to support a wider range of displays when analyzing high-bandwidth sources.

The unit has an integrated OLED display which provides a way to quickly and clearly view the current signal state or the results of signal analysis. This portable handheld design is ideal for both the professional end user and installation engineer alike.

HDMI input and output with 18Gbps (600MHz) 4K UHD support
DVI 1.0 compliant with the use of an HDMI-DVI adaptor
HDCP 1.4 and 2.2 compliant
Supports HD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)
Source bypass support in Analyzer mode
4K sources can be scaled down to 1080p in Analyzer mode to support a wider range of displays when analyzing a high-bandwidth source
HDR bypass and analysis support
Source video, audio and timing analysis
Analysis and emulation of EDID data
HDCP and SCDC monitoring functions
HDMI packet analysis
Analyzer mode complies with the CEA standard HDR static metadata extensions CEA-861-F and CEA-861.3
23 selectable output resolutions available in Test Pattern mode
11 selectable static test patterns in Test Pattern mode
HDMI 2.0 cable test function including tests for 5V, CEC and hot-plug detection support
Supports LPCM 2.0, 5.1, and 7.1 audio output with adjustable sinewave frequencies for each channel
Comprehensive EDID management support with 10 built-in default EDIDs and 10 user EDIDs copied from sink devices
Powered by a single Lithium-ion battery (not included). Use of an external USB power bank can provide extended operation time
OLED display with rapid updates of current status information
Supports optional Windows control software
Supports USB firmware update
Portable palm-sized design with easy to use front-panel controls

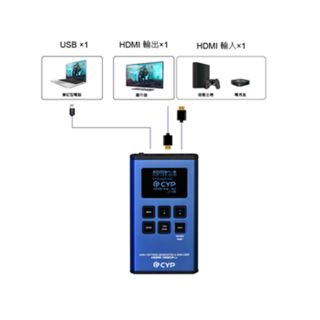

Interfaces

Input Port	1×HDMI (Type-A)
Output Port	1×HDMI (Type-A)
Control I/O	1 x USB (Micro-B)

Video

HDMI Compliance	2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Type	4K@60 8bit YUV 4:4:4
Output Signal Type	4K@60 8bit YUV 4:4:4
		Resolutions
Maximum Input	HDMI	4096x2160p@60
Maximum Output	HDMI	4096x2160p@60

Audio

HDMI	LPCM 8 channel Bitstream High-Definition Bitstream

Power

Power Supply	5V/2.1A USB power or Lithium-ion battery (not included)
Power Consumption	4.7W

Enclosure

Chassis Material	Metal (Aluminum)
Chassis Color	Dark Silver
Dimensions	126 mm (L) x 80 mm (W) x 26mm (H)
Weight	260g

Field Firmware Update

PC Update, WebGUI

Ordering Information

Model No.	Product Description
CPHD-V4L	UHD+ HDMI Signal Generator & Analyzer (Portable Version)
