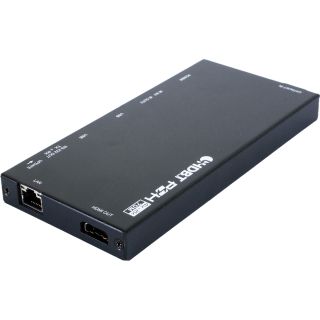

4K60 (4:2:0) HDMI over HDBaseT Slimline Receiver with IR, RS-232, PoH (PD), LAN & USB/KVM - Cypress CH-1528RX

4K60 (4:2:0) HDMI over HDBaseT Slimline Receiver with IR, RS-232, PoH (PD), LAN & USB/KVM - Cypress CH-1528RX

Artikelnummer: CH-1528RX
HAN: CH-1528RX
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of C ...

404,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports, USB and bidirectional LAN serving connection. The Receiver (PD) can be powered by the PoH 48V function of the Transmitter (PSE), allowing for greater flexibility in installations.

HDMI with 3D, 4K2K support, HDMI & DVI Compliant
Supports CEC bypass
Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K2K
5Play™ convergence: HDMI, LAN, PoH & Control (IR & RS-2232)
Supports resolution up to 4K2K@50/60 (YUV420) and 21:9
Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD)
Supports USB 2.0 keyboard and mouse
Ultra-thin wall plate design with friendly installation

Video Bandwidth	340 MHz/10.2 Gbps
Input Ports	1×CAT5e/6/7 1×IR 2×USB
Output Ports	1×HDMI 1×IR 1×RS-232 1×LAN
HDMI Resolutions	VGA~WUXGA (RB) 408i~4K2K@50/60 (YUV420)
IR Frequency	30~50 kHz
HDMI Cable Distance	Input: 10 m@1080p/8-bit or 12-bit, 5 m@4K Output: 10 m@1080p/8-bit, 5 m@1080p/12- bit or 4K
CAT Cable Distance	Up to 100m@4K2K
Power Supply	48 V/0.83 A DC (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions	78 mm (W)×163 mm (D)×16 mm (H)
Weight	334g
Chassis Material	Aluminum
Color	Black
Operating Temperature	0˚C~40˚C/32˚F~104˚F
Storage Temperature	−0˚C~60˚C/−˚F~140˚F
Relative Humidity	20~90% RH (non-condensing)
Power Consumption	16.5 W
