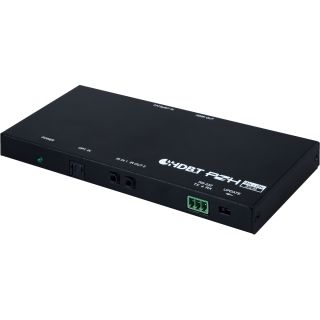

4K60 (4:2:0) HDMI over HDBaseT Slimline Receiver with IR, RS-232, PoH (PD) & OAR - Cypress CH-1529RXPL

4K60 (4:2:0) HDMI over HDBaseT Slimline Receiver with IR, RS-232, PoH (PD) & OAR - Cypress CH-1529RXPL

Artikelnummer: CH-1529RXPL
HAN: CH-1529RXPL
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over single CAT5e/6/7 Transmitter and Receiver set is a great solution to extend uncompressed audio/video and IP data ...

286,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

The HDMI over single CAT5e/6/7 Transmitter and Receiver set is a great solution to extend uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 60 meter. Multi-control interfaces are available which includes IR, RS-232 and USB connection. This new extender set complies with advanced protocols of HDCP 2.2 and HDMI 2.0, the HDCP 1.4 also supported. The 6G HDMI video is able to be processed. Except extend 4K2K data, it features useful audio functions. The “optical audio return” supports audio transmit back from Receiver to Transmitter. Besides, the “audio insertion” allows external audio insert to HDMI video such as background music insertion. The HDBaseT clock stretch and TMDS reclocking are considered. The Receiver (PD) can be powered by the PoH 48V function of the Transmitter (PSE), allowing for greater flexibility to fit different installation scenarios.

HDCP 1.4/HDCP 2.2 and HDMI 2.0 compliant
HDMI with 3D, 4K2K support and DVI Compliant
6G HDMI video (3840x2160 YUV444) input is supported
Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60m /196.8 ft at 1080p and 35m/115ft at 4K2K
4Play™ convergence: HDMI, PoE & Control (IR & RS-232)
Supports output resolution up to 4K2K@50/60 _YUV_420
Supports deep color input and output of 8 bits, 10 bits and 12 bits
Supports CEC bypass
Optical audio return supports audio transmit back from receiver to transmitter
Audio insertion supports external audio insert to HDMI video such as background music insertion
Supports EDID management PC software with default EDID and native EDID from display or other sink devices
Supports HDMI DDC bus clock stretch for better compatibility of some Blu-ray players
Manages TMDS re-clocking and signal re-generation for better signal
Supports standard 48V from Transmitter (PSE) to Receiver (PD)
Easily firmware update via USB in field
Ultra-thin wall plate design with friendly installation (The thickness is 16mm only)

Video Bandwidth	340MHz / 10.2Gbps
Input Ports	1 x CAT5e/6/7 1 x IR In 1 x Optical In
Output Ports	1 x HDMI 1 x IR Out 2
Others	1 x RS-232 1 x Update slide switch
HDMI Resolution	HD: 480i~4K2K@50/60 _ YUV_420
Resolution	PC: VGA ~ WUXGA
HDMI Cable Distance	In: 10m/1080p@8-bit or 12-bit and 5m@4K2K Out:10m/1080p@8-bit or 12-bit and 5m@4K2K
CAT5e/6/7 Cable Distance	Up to 60m
RS232 Baud Rate	Up to 115200 bps
IR Frequency	30~50kHz
ESD Protection	Human Body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Dimensions	78mm (W) x 163mm (D) x 16mm (H) [Excluded jacks] 78mm (W) x 183mm (D) x 16mm (H) [Included rack ears]
Weight	338g
Chassis Material	Aluminum
Color	Black
Operating Temperature	0˚C~40˚C / 32˚F ~ 104˚F
Storage Temperature	−0˚C~60˚C/−˚F~140˚F
Relative Humidity	20~90% RH (non-condensing)
Power Consumption	19.5W
