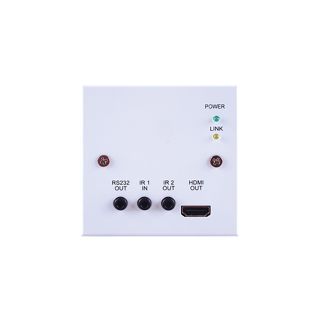

4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232 & PoC (PD) (1 gang UK) - Cypress CH-506RXWP

Artikelnummer: CH-506RXWP
HAN: CH-506RXWP
Kategorie: Extenders
Hersteller: Cypress Technology

The device that can make your home or office more efficient, this unit of HDMI over Single CAT5e/6/7 can transmit and receive un ...

288,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The device that can make your home or office more efficient, this unit of HDMI over Single CAT5e/6/7 can transmit and receive uncompressed audio/video, control through the built-in RS-232 and IR ports and Power on Cable(PoC) over 100 meters at 1080p or 70 meters at 4K with all plate design. Hence, if you want to make your home or office more efficient, get the HDMI & IR over single CAT5e/6/7 and prepare to be amazed.

HDCP compliant
Supports HDMI 3D and 4K x 2K features
Supports HDCP repeater and CEC bypass
Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable
HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI
4Play™ convergence: HDMI, PoC & Control (IR & RS232)
Wall plate design and Installation Friendly
Note: This system was tested with CAT6/23AWG cable, so if using cables of another type, results may vary.

Interfaces

Input Port

1×CAT5e/6/7

1×IR Extender

Output Port

1×HDMI

1×RS-232

1×IR Blaster

Video
HDMI Compliance	HDMI 1.x (DVI 1.0)
Input Signal Type	4K@60 8-bit YUV 4:2:0
Output Signal Type	4K@60 8-bit YUV 4:2:0
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
Maximum Output	CAT5e/6/7	4096×2160p@60 YUV 4:2:0

Power
Power Supply	24V / 1.25A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	3W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	87mm x 31mm x 87mm
Weight	200g

Field Firmware Update
WebGUI

ORDERING INFORMATION
Model No.	Product Description
CH-506TXWP	HDMI & IR over Single CAT5e/CAT6
CH-506RXWP	HDMI & IR over Single CAT5e/CAT6
