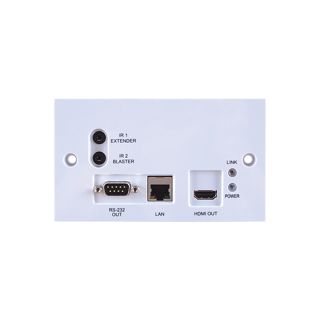

4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232, PoC (PD) & LAN (2 Gang UK) - Cypress CH-507RXWP

Artikelnummer: CH-507RXWP
HAN: CH-507RXWP
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed to receive uncompressed video, audio and IR control data from a c ...

275,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed to receive uncompressed video, audio and IR control data from a compatible transmitter over a single run of CAT5e/6/7 cable at a distance of up to 100 meters. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. Additionally, it can be powered by a compatible transmitter unit via the Power over Cable (PoC) functionality allowing for greater flexibility in installations.

HDMI with 3D, 4K2K support, HDCP and DVI compliant
Simultaneous tranmisson of uncompressed data over a single 100m CAT5e/6/7 cable (70m for 4K2K signals)
Uncompressed video support up to 1080p@60 Hz/36-bit
High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
HDBaseT™ 5PlayT™ convergence: uncompressed high definition Video and Audio, LAN serving, Power over Cable (PoC) and RS-232/IR control
Supports HDCP repeater and CEC bypass functions
Easy to install wall plate design

HDMI Bandwidth	10.2Gbps
HDBaseT Bandwidth	10.2Gbps
Input Ports	1×CAT5e/6/7, 1×LAN, 1×IR Extender
Output Ports	1×HDMI, 1×RS-232, 1×IR Blaster
IR Frequency	30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate	Up to 115200/sec
ESD Protection	Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions (W×H×D)	145.7 mm (W)×85.7 mm (D)×36.5 mm (H)/ Jacks Excluded 145.7 mm (W)×85.7 mm (D)×39.5 mm (H)/ Jacks Included
Weight	160g
Chassis Material	Plastic
Silkscreen Color	White
Operating Temperature	0 °C~40 °C/32 °F~104 °F
Storage Temperature	−20 °C ~ 60 °C/−4 °F~140 °F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	12 W (PoC), 9 W (Main)
