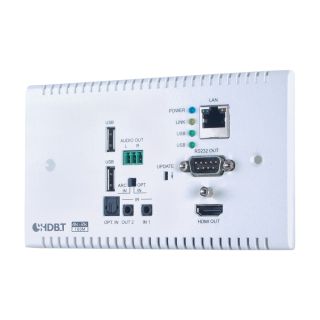

4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232, PoH (PD), LAN, USB/KVM & ARC (2 Gang UK) - Cypress CH-1602RXWPUK

Artikelnummer: CH-1602RXWPUK
HAN: CH-1602RXWPUK
Kategorie: Extenders
Hersteller: Cypress Technology

This HDMI and Audio over Single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video along with controls, ...

642,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI and Audio over Single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports. With LAN serving connection and external digital and analog audio capability that gives users the convenience of additional audio connection. This system also allows the connection of any USB host, enabling a USB connection to up to 2 USB ports, giving the Receiver the ability to act like a USB hub. The 48V PoH design can power the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver.

Supports HDBaseT 2.0 specification transmitting 4K@30 or 4K@60 YUV420 video signal over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft
Receiver features 2 USB 2.0 ports
HDMI (with 3D & 4K@60Hz YUV420 support), HDCP 2.2 and DVI compatible
HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, Power over HDBaseT (PoH) and Control (Bidirectional IR/RS-232 passthrough)
Supports passthrough of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD & DTS-HD Master Audio
Supports 10/100 Ethernet network connection
Supports external analog and digital audio transmission
Supports ARC function from HDMI out to both HDMI in and optical output
Supports RS-232 baud rate from 110~115200bps
UK 2 gang wall-plate design and installation friendly

Video Bandwidth	340 MHz/10.2 Gbps
Input Ports	1×CAT5e/6/7 1×Optical 1×IR Extender
Output Ports	1×HDMI 2×USB 1×L/R (Terminal Block) 1×LAN 1×IR Blaster 1×RS-232
IR Frequency	30~50 kHz
Baud Rate	Up to 115200 bps
Power Supply	48 V/0.83 A DC (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human Body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge)
Dimensions	156mm (W)× 90 mm (D)×36 mm (H) [Jacks Excluded] 156mm (W)× 90 mm (D)×40 mm (H) [Jacks Included]
Weight	264g
Chassis Material	Metal
Silkscreen Color	White
Operating Temperature	0˚C~40˚C/32˚F~104˚F
Storage temperature	-20˚C~60˚C/-4˚F~140˚F
Relative Humidity	20~90% RH (no condensation)
Power Consumption	21.34 W
