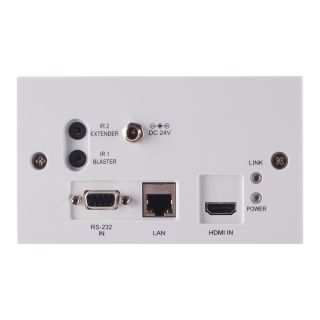

4K60 (4:2:0) HDMI over HDBaseT Wallplate Transmitter with IR, RS-232, Bidirectional PoC & LAN (2 Gang UK) - Cypress CH-507TXWPBD

Artikelnummer: CH-507TXWPBD
HAN: CH-507TXWPBD
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over Single CAT5e/6/7 Wall-plate Transmitter and Receiver set can send uncompressed video/audio and IP data over a sing ...

324,00 €

exkl. 19% USt. ,

Knapper Lagerbestand
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI over Single CAT5e/6/7 Wall-plate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater flexibility in installations.

HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant
Supports HDCP repeater and CEC bypass functions
Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 100m/328ft
HDBaseT™ 5Play convergence: uncompressed high-definition Video and Audio, LAN serving, bi-directional Power over Cable (PoC) and IR/RS-232 Control pass-through
Supports uncompressed video up to 4K2K resolution (3840×2160@30 Hz or 4096×2160@24 Hz)
Supports pass-through of high-definition audio formats - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
Wall-plate design and installation friendly

HDMI Bandwidth	10.2Gbps
HDBaseT Bandwidth	10.2Gbps
Input Ports	1×HDMI, 1×IR Extender, 1×LAN, 1×RS-232
Output Ports	1×CAT5e/6/7, 1×IR Blaster
IR Frequency	30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate	up to 115200/sec
Power Supply	24V DC / 1.25A (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human-body Model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Dimensions (mm)	145.7(W) x 85.7(D) x 36.5(H)/Jacks Excluded 145.7(W) x 85.7(D) x 39.5(H)/Jacks Included
Weight (g)	156
Chassis Material	Plastic
Silkscreen Color	White
Operating Temperature	0 °C~40 °C/32 °F~104 °F
Storage Temperature	−20 °C ~ 60 °C/−4 °F~140 °F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	12W/PoC, 9W/Stand Alone
