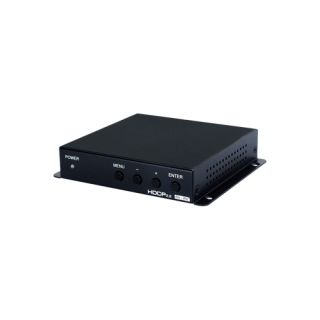

4K60 (4:4:4) 1×1 HDMI Scaler with EDID Management - Cypress CSC-6013

4K60 (4:4:4) 1×1 HDMI Scaler with EDID Management - Cypress CSC-6013

Artikelnummer: CSC-6013
HAN: CSC-6013
Kategorie: Scaler
Hersteller: Cypress Technology

This HDMI to HDMI Scaler is designed to convert and scale a wide range of HDMI sources for output to an equally wide array of HD ...

348,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI to HDMI Scaler is designed to convert and scale a wide range of HDMI sources for output to an equally wide array of HDMI resolutions. Input sources are supported at resolutions up to and including 4K@60Hz (4:4:4, 8-bit). Supported output resolutions range from SVGA to 3840×2160@60Hz (4:4:4, 8-bit). The friendly and simple design ensures that the user can set the unit up and quickly get a high quality picture on their display. Additionally, this unit provides analog stereo breakout audio (LPCM 2.0 sources only) to support the use of external powered speakers. A perfect tool for your HD and UHD signal conversion needs. The unit can be controlled via front panel buttons with an On-Screen Display (OSD).

HDMI input and output with 18Gbps (600MHz) 4K UHD support
DVI 1.0 compliant with the use of an HDMI-DVI adaptor
HDCP 1.4 and 2.2 compliant
Supports HD resolutions up to 3840×2160@60Hz (4:4:4, 8-bit) & 4096×2160@60Hz (4:4:4, 8-bit)
Supports 16-bit Deep Color up to 1080p@60Hz
Supports 12-bit Deep Color up to 4K@60Hz (YUV 4:2:0) & 4K@30Hz (4:4:4)
Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats over HDMI
Analog stereo audio breakout (LPCM 2.0 sources only)
Supports up and down scaling of a wide variety of HDMI source resolutions, from 480p to 4K@60Hz
Provides EDID management via EDID bypass, 6 built-in EDIDs or 1 user modifiable EDID
Controllable via front-panel buttons with OSD

Video Bandwidth	600MHz/18Gbps
Input Port	1×HDMI
Output Ports	1×HDMI 1×3.5mm (Stereo)
Control Interfaces	1×IR Blaster (3.5mm) 1×IR Extender (3.5mm) 1×RS-232 (3-pin Terminal Block) 1×LAN (RJ45)
HDMI Cable Length	10m (1080p@60Hz, 12-bit) 3m (4K@60Hz, 4:4:4, 8-bit)
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection	Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge)
Dimensions	125mm×25mm×108mm (W×H×D) [Case Only] 128mm×25mm×117mm (W×H×D) [All Inclusive]
Weight	368g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0˚C - 40˚C/32˚F - 104˚F
Storage Temperature	−20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity	20 - 90% RH (Non-condensing)
Power Consumption	6W
