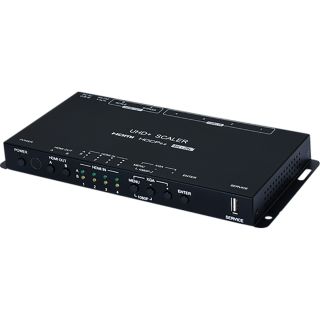

4K60 (4:4:4) 4×2 HDMI Matrixing Scaler - Cypress CSC-104

4K60 (4:4:4) 4×2 HDMI Matrixing Scaler - Cypress CSC-104

Artikelnummer: CSC-104
HAN: CSC-104
Kategorie: Scaler
Hersteller: Cypress Technology

This Scaler is a new and powerful 4K scaling solution. The maximum resolution supported is 4096×2160@50/60Hz (4:4:4, 8-bit) for ...

504,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Scaler is a new and powerful 4K scaling solution. The maximum resolution supported is 4096×2160@50/60Hz (4:4:4, 8-bit) for all HDMI inputs and outputs. The scaled HDMI output is powered by a high quality single-pass scaling engine with the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels. 3-D motion adaptive deinterlacing and frame rate conversion is supported as well.

Additionally this unit brings a new level of ease of integration when employed in conference centers, classrooms and other public venues. The auto source detection and switching feature is designed to switch to the most recently connected source automatically and to switch to another live input if the current one becomes disconnected. The dedicated bypass output can send the selected source, without modification, to the connected display or, if desired, color space correction or down-conversion to 1080p can be applied to the signal.

The HDMI inputs and outputs support passing uncompressed digital audio up to LPCM 7.1 as well as Bitstream and HD Bitstream audio formats. Shortcut keys are provided to quickly change the output resolution to 1080p@60Hz or XGA when needed for quick connection to a display or for troubleshooting purposes. This unit is controlled via comprehensive front panel controls (with OSD), RS-232, and IR remote providing the user with easy access to all settings.

HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
HDCP 2.2 and HDCP 1.x compliant
4 HDMI input and 2 HDMI output matrix
Advanced single-pass 4K scaling engine
Supports up to 4K UHD (18Gbps, 4096×2160@50/60Hz 4:4:4, 8-bit) video input
Scaled and bypass HDMI outputs support video up to 4K UHD (18Gbps, 4096×2160@50/60Hz 4:4:4, 8-bit)
HDMI inputs support Deep Color up to 16-bit at 1080p and 10/12-bit HDR (High Dynamic Range) up to 4K
Bypass HDMI output supports Deep Color up to 16-bit at 1080p and 10/12-bit HDR (High Dynamic Range) up to 4K
Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Scaled output supports adjustments to contrast, brightness, hue, saturation, sharpness, RGB levels ,and aspect ratio
Advanced EDID and HDCP management
Auto input scan and auto switch functionality
Quick output resolution switching via hot keys
Controllable via front-panel buttons with OSD, RS-232 or IR remote

HDMI Bandwidth	600MHz/18Gbps
Input Ports	4 x HDMI
Output Ports	2 x HDMI
Control Port	1 x RS-232 (Terminal Block)
Other Port	1 x Service (USB Type-A)
IR Frequency	30-50kHz (30-60kHz under ideal conditions)
Baud Rate	19200bps
Power Supply	5v/3A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection	Human Body Model: ±8kV (Air Discharge) ±4kV (Contact Discharge)
Dimensions	231.5mm×25mm×108mm (W×H×D) [Case Only] 231.5mm×25mm×120mm (W×H×D) [All Inclusive]
Weight	700g
Chassis Material	Metal (Steel)
Silkscreen Color	Black
Operating Temperature	0˚C–40˚C/32˚F–104˚F
Storage Temperature	-20˚C–60˚C/-4˚F–140˚F
Relative Humidity	20–90% RH (Non-condensing)
Power Consumption	12.8W
