4K@60hz DisplayPort 1.2 Glasfaser-Empfänger bis 200m - Opticis DPFX-250

4K@60hz DisplayPort 1.2 Glasfaser-Empfänger bis 200m - Opticis DPFX-250

Artikelnummer: DPFX-250-RX
Kategorie: DisplayPort
Hersteller: Opticis

The transmitter and receiver set, DPFX-250-TR enables to transmit 4K (4096x2160) at 60Hz signal up to 200m (656feet) over two (2) LC multi-mode fibers, avoiding any tricks like scaling or data compression for lessening a burden of data transmission.

650,00 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

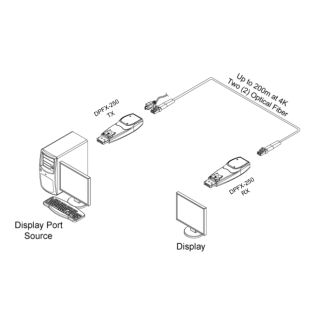

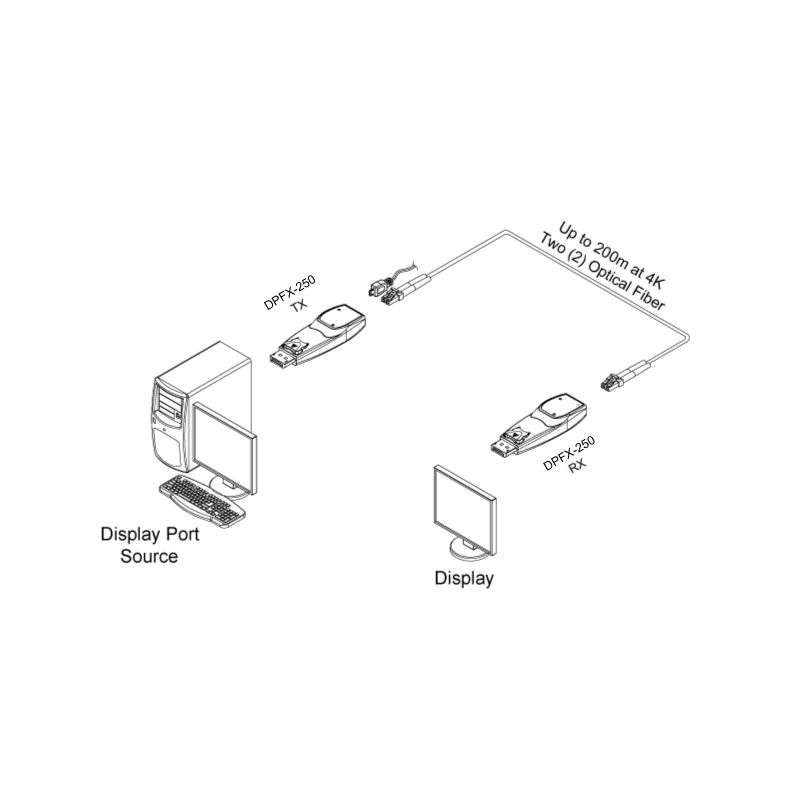

Optical Updated DisplayPort extender, DPFX-250-TR is designed compact enough to be fitted into various installation environments with two (2) LC fibers connection. The transmitter and receiver set, DPFX-250-TR enables to transmit 4K (4096x2160) at 60Hz signal up to 200m (656 feet) over two (2) LC multi-mode fibers, avoiding any tricks like scaling or data compression for lessening a burden of data transmission. Between the transmitter and the receiver, pure fiber connection by two (2) LC fibers connector gives clean, secure and easy installation with a perfect electrical isolation and no electrical hazard. The DPFX-250-TR can be operated by USB power without external DC power adapter by plugging the supplied USB to DC plug cables to each module.

Tech Specs

Supports 4K and DisplayPort 1.2 standards
Extends 4K (4096x2160) at 60Hz
Transmits DP data up to 200m (656feet) over two (2) LC multi-mode fibers (50/125um)
Offers total data rate 21.6Gbps (5.4Gbps per lane)
Supports Dual-mode DP (DP++)
Supports Auxiliary /l²C channel over fiber
Supports Multi-Stream transport
Compact design allows direct connect to the DP display
Plug & Play
Auto power switching
Data security with negligible EMI emission
Certifies FCC and CE standards for EMI/RFI emission
