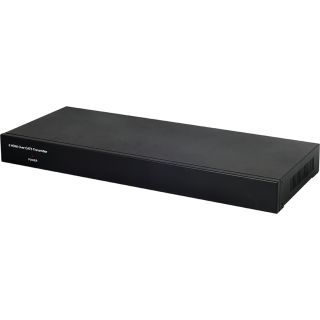

8 HDMI over CAT5e/6/7 Point-to-Point Transmitter - Cypress CSI-8H8CVTX

8 HDMI over CAT5e/6/7 Point-to-Point Transmitter - Cypress CSI-8H8CVTX

Artikelnummer: CSI-8H8CVTX
Kategorie: Extenders
Hersteller: Cypress Technology

The 8 HDMI™ over CAT5e/6/7 Point-to-Point Transmitter supports the transmission of uncompressed video (up to 1080p@60 Hz/36-bit) ...

1.550,00 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The 8 HDMI™ over CAT5e/6/7 Point-to-Point Transmitter supports the transmission of uncompressed video (up to 1080p@60 Hz/36-bit) with multi-channel digital audio from up to eight high definition sources to up to eight CAT5e/6/7 outputs. The unit can be used in conjunction with an 8 by 8 HDMI matrix (optional) to provide switching control, allowing the display of any source device on any output display.

HDMI, HDCP 1.1 and DVI compliant
Supports HDMI 3D and 4K×2K features
Support CEC bypass
Supports PoE (Power over Ethernet) on compatible receivers only
Supports audio up to 7.1Ch, Dolby TrueHD and DTS-HD Master Audio
Supports high bit-rate audio up to 192 kHz
Supports resolutions VGA~WUXGA and 480i~1080p dependent upon the output display’s EDID settings
Supports uncompressed video up to 1080p@60 Hz/36-bit
Supports extension up to 100 meters through CAT5e/6/7
Supports 3D signal display dependent upon the output display's EDID settings
Supports HDMI input up to 10 meters at 8-bit resolution or 6 meters at 12-bit resolution
1U size design

Video Bandwidth	300 MHz/10.2 Gbps
Input Ports	8×HDMI
Output Ports	8×CAT5e/6/7
Input / Output Resolution	VGA~WUXGA, 480i~1080p
HDMI Cable Distance	Up to 10 meters@8-bit, 6 meters@12-bit
CAT Cable Distance	Up to 100 meters@CAT5e/6/7 cable
ESD Protection	Human-body Model: ±8 kV (Air-gap discharge) ±4 kV (Contact discharge)
Power Supply	24 V/6.25 A DC (US/EU standards, CE/ FCC/UL certified)
Dimensions	432 mm (W)×179 mm (D)×49mm (H)
Weight	2000 g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature	−20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	71 W (Including PoE Receiver)
