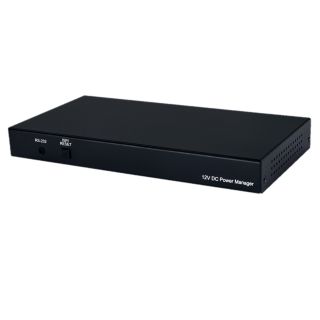

8-Port 12V DC Power Manager - Cypress CSR-8PSU-12V

8-Port 12V DC Power Manager - Cypress CSR-8PSU-12V

Artikelnummer: CSR-8PSU-12V
HAN: CSR-8PSU-12V
Kategorie: Power Manager
Hersteller: Cypress Technology

This 8-Port 12V DC Power Manager is a DC power splitter which can distribute up to 125 milliamps of 12 volt power to up to eight ...

661,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This 8-Port 12V DC Power Manager is a DC power splitter which can distribute up to 125 milliamps of 12 volt power to up to eight connected devices via 2-pin terminal block connections (115 watts total across all 8 outputs). Ideal for professional applications, this unit provides direct per-port power control via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows for detailed power scheduling based on a repeating daily/weekly schedule, or single events. Up to 2 fans may be connected and their speed can be either automatically controlled based on a detected temperature, or set to a single static speed. Detailed status information about the power input, each power output, current fan speed, and system temperature is provided to give a comprehensive system overview.

Power management system providing voltage-controlled current (12V) on each output
Battery backed up clock for scheduling power events
Integrated WebGUI for control and power analysis
Unit’s overall maximum power consumption is only 150 watts
Supports 8 power output ports with professional 2-pin 3.5mm terminal block connectors
115 watts of total power provided across all 8 outputs
Dynamic loading function balances the power provided to each DC output

Interfaces
Input Port	8× 12V DC (2-pin Terminal Block) 2× Fan Out (4-pin Terminal Block)
Output Port	1× RS232(3.5mm) 1× IP Control (RJ45)

Power
Power Supply	12V/12.5A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	150W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	211.5mm×24mm×116.5mm (W×H×D) [Case Only] 211.5mm×25mm×117.5mm (W×H×D) [All Inclusive]
Weight	285g

Field Firmware Update
Interface	PC Update, WebGUI

Ordering Information
Model No.	Product Description
CSR-8PSU-12V	8-Port 12V DC Power Manager
