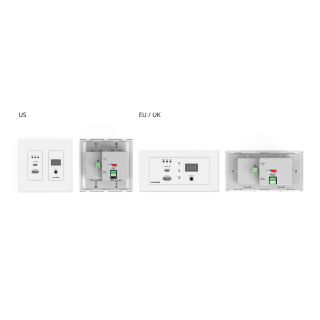

80/86(W) High-performance, highly scalable, AVoIP Wall Plate Encoder for 4K60 4:2:0, HDR10<br>over 1G Network, with EU & UK White Frames

80/86(W) High-performance, highly scalable, AVoIP Wall Plate Encoder for 4K60 4:2:0, HDR10<br>over 1G Network, with EU & UK White Frames

Artikelnummer: KRA-59-00001490
EAN: 7291063097592
HAN: WP-SW2-EN7/EU-D(W)80/86
Kategorie: AV Streamers
Hersteller: Kramer

1.378,30 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

WP−SW2−EN7 is an advanced wall plate encoder for streaming 4K video signals via Ethernet over copper cable.

Video Streaming Transmitter — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
Streaming Support — Unicast and multicast.
Multiple Inputs — One HDMI input and one USB–C input, which support multiple switching policy including Last connected, Priority and Manually.
Analog Audio Embedding — Embed the unbalanced analog audio into the streaming and HDMI output signal.
Convenient and Comprehensive Control — Control the unit using intuitive web interface, protocol 3000 API commands via Ethernet, or front panel LCD and navigation buttons.
Control Gateway — Through P3K or special TCP connection, user can control/communicate with RS232, CEC to the connected devices.
PoE Support — Option to power with PoE connection from a PoE switch.

Eingang

Datenports

Network

Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
Unicast: Through RTSP (Real Time Streaming Protocol)
Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

Video

Video Streaming

Compression Standard: JPEG2K based, proprietary stream
Max Input Resolution: 4K@60hz (4:2:0)
Max Output Resolution: 4K@30hz (4:4:4)
Max End-to-End Resolution: 4K@30hz (4:4:4)
Scaler: Yes
End-to-End Latency: 33msec
Switching Time: 1sec

Resolution

4096x2160@60Hz, 1600x1200@60Hz, 1280x960@60Hz, 848x480@60Hz,
3840x2160@60Hz, 1600x900@60Hz, 1280x800@60Hz, 800x600@60Hz,
1920x1200@50Hz, 1440x900@60Hz, 1280x768@60Hz, 720x576@60Hz,
1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,
1856x1392@60Hz, 1366x768@60Hz, 1224x768@70Hz, 640x480@60Hz,
1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz,
1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz

Audio

Supported Formats: LPCM, Dolby and DTS
LPCM: LPCM upto 7.1/24–bit/192kHz
Dolby: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
DTS: DTS–HD Master Audio, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1

Security

Bedienoberfläche

Energiebedarf

PoE (Power over Ethernet): 37V to 57V, maximum power consumption 12W
Optional Power Supply: 20V DC, 6A Max
Consumption when using Optional Power Supply: 68W (with USB–C charging)

Umweltbedingungen

Einhaltung von Vorschriften (Einhaltung von Standards)

Gehäuse

Produktabmessung

US: 12.10cm x 4.56cm x 12.10cm (4.76" x 1.80" x 4.76" ) W, D, H
UK: 15.10cm x 4.56cm x 8.60cm (5.94" x 1.80" x 3.39" ) W, D, H

Produktgewicht

US: 0.4kg (1.0lbs) approx.
UK: 0.4kg (0.9lbs) approx.

Versandabmessung

US: 20.00cm x 13.70cm x 8.00cm (7.87" x 5.39" x 3.15" ) W, D, H
UK: 24.00cm x 13.70cm x 7.50cm (9.45" x 5.39" x 2.95" ) W, D, H

Versandgewicht

US: 0.7kg (1.5lbs) approx.
UK: 0.7kg (1.4lbs) approx.
