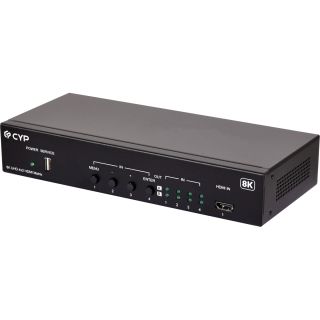

8K UHD 4x2 HDMI Matrix with Dante Audio - Cypress VMX-H8K-4201

8K UHD 4x2 HDMI Matrix with Dante Audio - Cypress VMX-H8K-4201

Artikelnummer: VMX-H8K-4201
Kategorie: Extenders
Hersteller: Cypress Technology

This new generation 8K HDMI matrix for pursuing higher resolution of current technology could achieve. The unit allows user to r ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

This new generation 8K HDMI matrix for pursuing higher resolution of current technology could achieve. The unit allows user to route 4 8K input sources to any of 2 HDMI outputs, this unit comes with full support for 8K@30Hz (4:2:0, 8- bit) as well as support for 16-bit Deep Color, HDR (High Dynamic Range), 3D content, HD audio and other features defined by HDMI 2.1 specification. Front panel controlled OSD provides easy onsite setting, along with other control interface like RS-232, Ethernet, and TCP control.

With expand function of Dante® (digital audio network through Ethernet) support, Dante® digital audio output enables audio transport of up to two stereo audio signals over a network using standard Internet protocols. It also supports AES67 and Audinate Dante® Controller. Ethernet is used for remote control while a front panel with buttons optimized for use in challenging environments, allows full local control of all features. The integration of Dante® audio out facilitates system expansion when paired with many of Cypress’s Dante-enabled audio processing products.

*The Dante® is optional selection not included in standard product.

Full range of formats including 8K30 YUV4:2:0, HDR10+ and 3D content
Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
Multiple control interfaces including RS-232, Telnet, WebGUI and front panel select
Support internal EDIDs and external EDIDs options
Support Auto Source Switch

Interfaces
Input Port	4×HDMI (Type-A)
Output Port	2 HDMI (Type A)
Output Port	1 Ethernet (RJ-45) 1 RS-232 (3-pin terminal block) 1 USB(Type A)
Output Port	1 Ethernet(RJ-45) 2 Stereo Analog Out (5-pin Terminal Block)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.2
Input Signal Type	8K@30 YUV 4:2:0
Output Signal Type	8K@30 YUV 4:2:0
Resolutions
Maximum Input	HDMI	7680×4320p@30( YUV 4:2:0)
Maximum Output	HDMI	7680×4320p@30( YUV 4:2:0)

Audio
HDMI	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
DAC	Max Audio Level: 4.2Vrms Impedance: 5kOhm Type: Balanced S/N Ratio: > 70dB (1kHz with 0dBFS)

Power
Power Supply	5V/2.6A DC (Locking)
Power Consumption	6W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	240mm×43mm×104mm [Case Only] 240mm×48mm×112mm [All Inclusive]
Weight	916g

Field Firmware Update
Interfaces	USB

ORDERING INFORMATION
Model No.	Product Description
VMX-H8K-4201	8K UHD 4x2 HDMI Matrix with Dante Audio
