Compact Digital Audio Processor with De-pop, Volume Adjustment and SRC Functions - Cypress DCT-39

Compact Digital Audio Processor with De-pop, Volume Adjustment and SRC Functions - Cypress DCT-39

Artikelnummer: DCT-39
HAN: DCT-39
Kategorie: Processor
Hersteller: Cypress Technology

The digital audio processor is designed to allow optical or coaxial LPCM audio source input and convert to different sampling ra ...

156,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

The digital audio processor is designed to allow optical or coaxial LPCM audio source input and convert to different sampling rates up to 192kHz/24bits. The digital audio processor utilizes DSP engine instead of software process to prevent distortion. The converted audio source signal could be output to both optical and coaxial audio signals simultaneously. The outputs can be connected with amplifier for high quality audio output. Besides, the audio processor support DSD over PCM (DOP) decodes to PCM in order to further process the audio signal not only for sampling rate convert but also volume control. Meanwhile, the pop noise could be reduced when plug in audio source

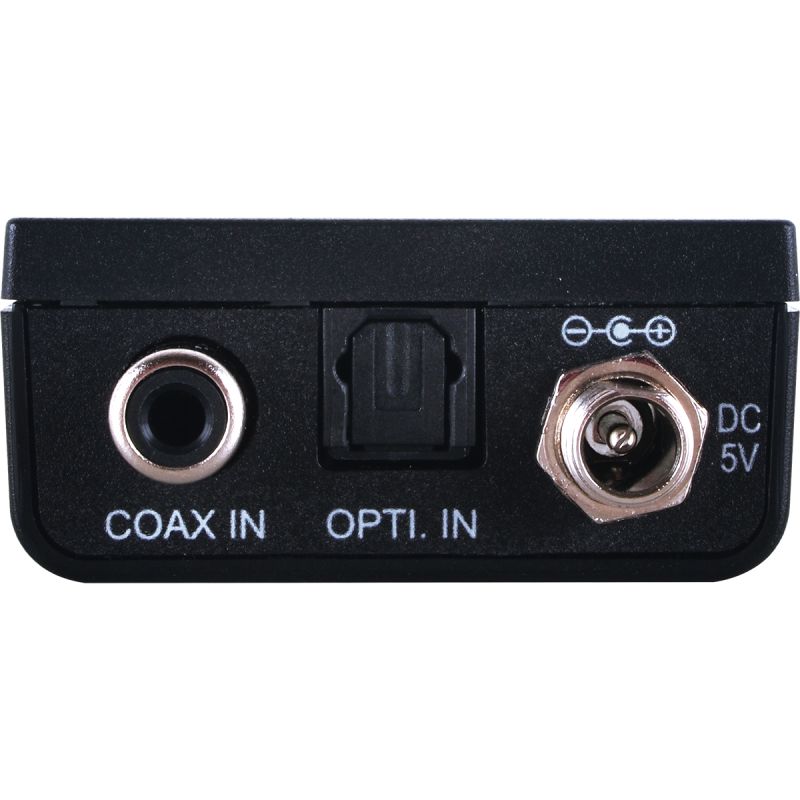

Supports coaxial and optical digital audio input
Supports Non-LPCM pass through

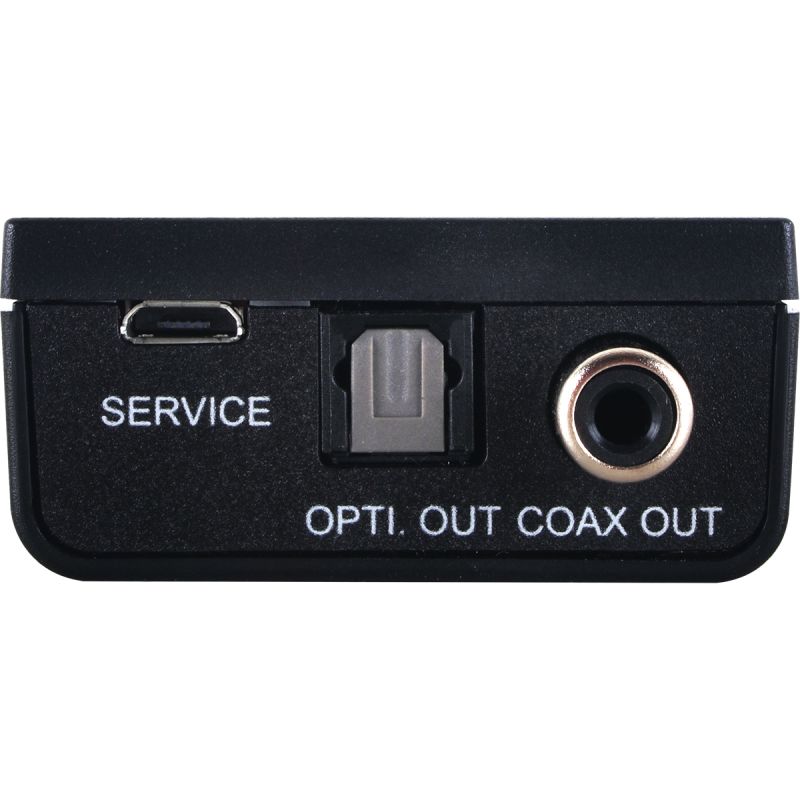

Supports coaxial and optical audio output simultaneously
Supports LPCM input sampling rates up to 192kHz
Supports to convert sampling rate of input audio source. The maximum sampling rate up to 192kHz/24 bits
De-pop function to eliminate pop sound once plug in audio source

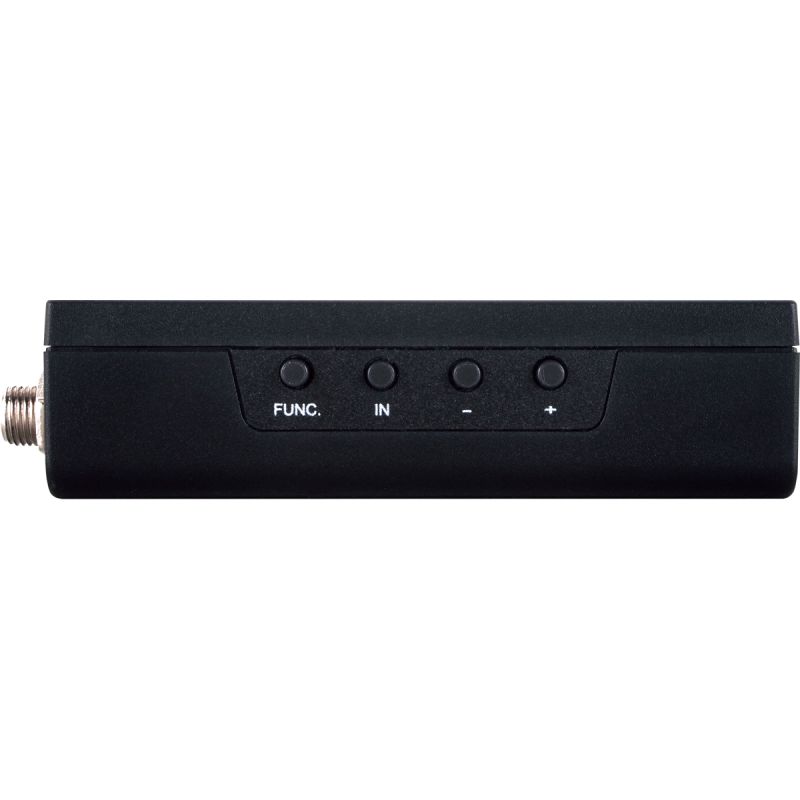

Supports volume control, the minimum volume control could be reduced to -60dB
Supports DOP decode to PCM of coaxial and optical audio source
Supports firmware update via micro USB
Compact and light weight design

Interfaces
Input Port	1 Coaxial 1 Optical
Output Port	1 Coaxial 1 Optica

Video

Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:4:4
Maximum Output	HDMI	4096x2160p@60 YUV 4:4:4

Audio
ESD Protection	Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)

Power
Power Supply	5V/2.6A DC
Power Consumption	0.7w

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	50 mm ×85 mm ×22.5 mm [Jacks Excluded] 51 mm ×98 mm ×22.5 mm [Jacks Included]
Weight	61 g

Ordering Information
Model No.	Product Description
DCT-39	Compact Digital Audio Processor with De-pop, Volume Adjustment and SRC Functions
