Glasfaser 4K Displayport 1.2 Extender bis 200m - DPFX-300-TR

Glasfaser 4K Displayport 1.2 Extender bis 200m - DPFX-300-TR

Artikelnummer: DPFX-300-TR
HAN: DPFX-300-TR
Kategorie: DisplayPort
Hersteller: Opticis

Kompressionsfreie 1:1 Übertragung von Displayport 1.2 Signalen über 1 LC-Glasfaser (Multimode OM3 oder besser) bis maximal 100 m. Maximale Auflösung 4K (4.096 x 2.160) bei 60 Hz mit 10 bit Farbtiefe. Spannungsversorgung über USB-Kabel oder über die Displayport-Schnittstelle. Vollkommen transparente Verbindung, keine Treiber erforderlich!

1.250,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 30 Tagen.
Lieferzeit: ca. 5 Wochen (DE - Ausland abweichend)

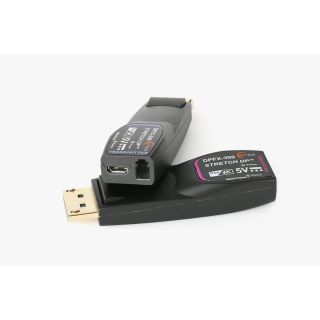

New optical DisplayPort extender, DPFX-200-TR is designed compact enough to be fitted into various installation environments with one (1) LC fiber connection.

The transmitter and receiver set, DPFX-200-TR enables to transmit 4K (4096x2160) at 60Hz signal up to 100m (328feet) over one (1) LC multi-mode fiber, avoiding any tricks like scaling or data compression for lessening a burden of data transmission.

Between the transmitter and the receiver, pure fiber connection by one (1) LC fiber connector gives clean, secure and easy installation with a perfect electrical isolation and no electrical hazard. The DPFX-300-TR can be operated by USB power without external DC power adapter by plugging the supplied USB to DC plug cables to each module.

Supports 4K and DisplayPort 1.2 standards
Extends 4K (4096x2160) at 60Hz
Transmits DP data up to 100m (328feet) over one (1) LC multi-mode fiber (50/125um).
Offers total data rate 21.6Gbps (5.4Gbps per lane)
Supports Dual-mode DP (DP++)
Supports Auxiliary /l²C channel over fiber
Supports Multi-Stream transport
Compact design allows direct connect to the DP display.
Plug & Play
Auto power switching
Data security with negligible EMI emission.
Certifies FCC and CE standards for EMI/RFI emission

https://www.dimedtec.de/downloads/Opticis/DPFX-300/
