Glasfaser Displayport 1.1a Extender bis 200m - Opticis DPFX-100

Glasfaser Displayport 1.1a Extender bis 200m - Opticis DPFX-100

Artikelnummer: DPFX-100-TR
EAN: 8716065308662
HAN: DPFX-100-TR
Kategorie: DisplayPort
Hersteller: Opticis

Kompressionsfreie 1:1 Übertragung von Displayport 1.1a Signalen über 2 LC-Glasfasern (Multimode OM3 oder besser) bis maximal 200 m. Maximale Auflösung WQXGA (2.560 x 1.600) bei 60 Hz mit 10 bit Farbtiefe. Spannungsversorgung über USB-Kabel oder mitgeliefertes Netzteil. Vollkommen transparente Verbindung, keine Treiber erforderlich!

1.000,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 7 Tagen.
Lieferzeit: 8 - 10 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

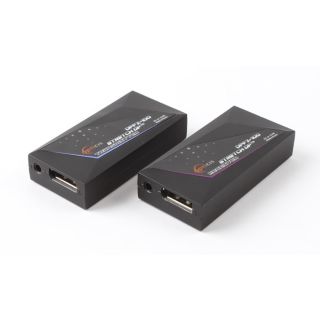

Optical DisplayPort extender, DPFX-100-TR is designed compact enough to be fitted into various installation environments with two (2) LC fibers connection. The transmitter and receiver set, DPFX-100-TR enables to transmit WQXGA (2560x1600) at 60Hz signal up to 200m (656 feet), avoiding any tricks like scaling or data compression for lessening a burden of data transmission. It provides total data throughput 10.8Gbps (2.7Gbps per lane).

The pure fiber connection by two (2) LC fibers connector between transmitter and receiver, gives clean, secure and easy installation with perfect electrical isolation, but no electrical hazard.

The DPFX-100-TR can be operated by USB power without external DC power adapter by plugging the supplied USB to DC plug cables to each module.

In shipping group, two (2) short DP cables are also included so as to be mated to various types of DP connectors.

Supports DisplayPort 1.1a standards
Extends WQXGA (2560x1600) at 60Hz
Transmits DP data up to 200m (656 feet) over two (2) LC multi-mode fibers (50/125um).
Offers total data rate 10.8Gbps (2.7Gbps per lane)
Supports auxiliary channel
Plug & Play
Has DP receptacle and provides intermediate cable for flexible installation
Operated by USB power or DC power supplier
Operating temperature: 0 ~ 50?
Storage temperature: -30 ~ 70?
Input power: +5V, 1A
Dimensions (WDH): 72 x 35 x 16mm
Certifications: CE / FCC, Class 1 Laser Eye Safety
