HDBaseT 3.0 Receiver für 4K60 4:4:4 HDMI, USB, Ethernet, RS-232 und IR, mit eXtra Reichweite und bidirektionalem PoE

HDBaseT 3.0 Receiver für 4K60 4:4:4 HDMI, USB, Ethernet, RS-232 und IR, mit eXtra Reichweite und bidirektionalem PoE

Artikelnummer: KRA-50-80580090
EAN: 7291063098919
HAN: EXT3-POE-XR-R
Kategorie: HDMI Übertrager
Hersteller: Kramer

HDMI | Ethernet - RJ-45 | HDBaseT

751,80 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

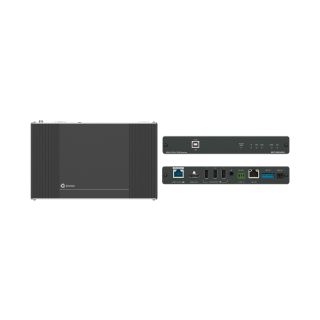

EXT3−POE−XR−R is a high−performance, extended−reach HDBaseT 3.0 receiver for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals and 2−way powering over twisted pair. EXT3−POE−XR−R receiver receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device, or accepts PoE through the extension cable from a PoE provider remote device, as auto−sensed by the receiver.

High Performance Standard Extender — Professional HDBaseT extender for providing extended–reach signals over twisted–pair copper infrastructures. EXT3–POE–XR–R is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
Bidirectional PoE (Power over Ethernet) — Auto–senses the extension line PoE status and either provides power to a remote POE acceptor such as a PoE wall–plate, or accepts power from a remote PoE provider such as a PoE matrix.
HDMI Signal Extension — HDCP 2.3, EDID and CEC signals are passed through from the source to the display.
HDMI Support — Supports HDR10, deep color, x.v.Color™, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
Flexible USB 2.0 Extension — An active USB host is connected at either the transmitter or receiver sides of the extension line. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.
I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
Cost–effective Maintenance — Status LED indicators for HDMI, HDBT, USB active host ports, and PoE providing status facilitate easy local maintenance and troubleshooting.
Easy and Elegant Installation — MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

Eingang

Ausgang

Datenports

1 USB 2.0 Host: On a USB–B female connector
3 USB 2.0 Device: On USB type–A female connectors
1 1000BaseT Ethernet: On an RJ–45 female connector for LAN extension
1 IR: On a 3.5mm mini jack for IR extension
1 RS–232: On a 3–pin terminal block for serial extension

USB Features

Verlängerungs- leitung

Video

Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution
Content Protection: HDCP 2.3
HDMI Support: 4K as specified in HDMI 2.0b

Extended USB

Extended Ethernet

Extended RS-232

Energiebedarf

Gehäuse

Umweltbedingungen

Einhaltung von Vorschriften (Einhaltung von Standards)

Zubehör

Produktabmessung

19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H

Produktgewicht

Versandabmessung

34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

Versandgewicht

Angaben zur Produktsicherheit

Herstellerinformationen:

Kramer Germany GmbH
Gladbacher Straße 17
Heinsberg, , 52525
info_de@kramerav.com
https://www.kramerav.com/de

Versandgewicht:	1,23 kg
