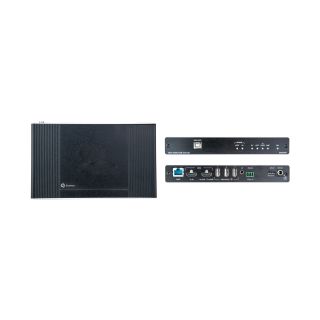

HDBaseT 3.0 Transmitter/Receiver für 4K60 4:4:4 HDMI, USB, Ethernet, RS-232, und IR

HDBaseT 3.0 Transmitter/Receiver für 4K60 4:4:4 HDMI, USB, Ethernet, RS-232, und IR

Artikelnummer: KRA-50-80572390
EAN: 7291063098902
HAN: EXT3-TR
Kategorie: HDMI Übertrager
Hersteller: Kramer

HDMI | AV Award | HDBaseT | 4K/60 UHD (4:4:4)

563,85 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

EXT3−TR is a high−performance, long−reach HDBaseT 3.0 extender for 4K60Hz (4:4:4) HDMI, USB, RS−232, and IR signals over twisted pair, flexibly set as transmitter−side or receiver−side device. EXT3−TR transmitter−side converts all input signals into the transmitted HDBaseT 3.0 signal. EXT3−TR receiver−side receives the HDBaseT 3.0 signal and converts it back into the original input signals. It extends video signals up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.

High Performance Standard Extender — Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. EXT3–TR is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
HDMI Signal Extension — HDCP 2.3, EDID and CEC signals are passed through from the source to the display. Supports HDR10, deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
HDMI Mirroring — Transmitter–side extender mirrors input HDMI signal to loop output port for connecting a local monitor or an additional unit in a daisy chain.
Flexible USB 2.0 Extension — An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.
Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
Cost–effective Maintenance — Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting.
Easy and Elegant Installation — MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

Eingang

Ausgang

TRANSMITTER–SIDE OUTPUTS
1 HDBT: On an RJ–45 female connector
1 LOOP: On a HDMI female connector
RECEIVER–SIDE OUTPUTS
1 HDMI: On a HDMI female connector

Datenports

1 USB 2.0 Host: On a USB–B female connector
3 USB 2.0 Device: On USB type–A female connectors
1 IR: On a 3.5mm mini jack for IR link extension
1 RS–232: On a 3–pin terminal block for serial link extension

USB Features

Verlängerungs- leitung

Up to 40m (130ft): At 4K@60Hz (4:4:4)
Up to 70m (230ft): At up to 4K@30Hz (4:4:4)
Up to 70m (230ft): At 1080p@60hz
Note: When using Kramer HDBaseT cables
Standards Compliance: HDBaseT 3.0

Video

Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution
Content Protection: HDCP 2.3
HDMI Support: 4K as specified in HDMI 2.0b

Extended USB

Extended RS-232

Energiebedarf

Gehäuse

Umweltbedingungen

Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
Vibration: ISTA 1A in carton (International Safe Transit Association)

Einhaltung von Vorschriften (Einhaltung von Standards)

Zubehör

Produktabmessung

19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H

Produktgewicht

Versandabmessung

34.50cm x 16.20cm x 5.20cm (13.58" x 6.38" x 2.05" ) W, D, H

Versandgewicht

Angaben zur Produktsicherheit

Herstellerinformationen:

Kramer Germany GmbH
Gladbacher Straße 17
Heinsberg, , 52525
info_de@kramerav.com
https://www.kramerav.com/de

Versandgewicht:	1,12 kg
