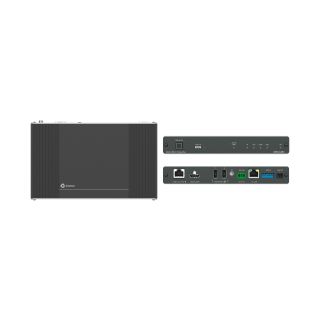

HDBaseT 3.0 Transmitter für 4K60 4:4:4 USB-C DP alt-mode, USB, Ethernet, RS-232, und IR, mit eXtra Reichweite

HDBaseT 3.0 Transmitter für 4K60 4:4:4 USB-C DP alt-mode, USB, Ethernet, RS-232, und IR, mit eXtra Reichweite

Artikelnummer: KRA-50-80579090
EAN: 7291063098131
HAN: EXT3-C-XR-T
Kategorie: USB-C Extenders
Hersteller: Kramer

892,80 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

EXT3−C−XR−T is a high−performance, extended−reach HDBaseT 3.0 transmitter, with a USB−C input, for 4K60Hz (4:4:4) HDMI, USB, Ethernet, RS−232, and IR signals over twisted pair. EXT3−C−XR−T transmitter converts all input signals into the transmitted HDBaseT 3.0 signal. It extends video signals to up 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:4:4) video resolution.

High Performance Standard Extender — Professional HDBaseT extender for providing extended–reach signals over twisted–pair copper infrastructures. EXT3–C–XR–T is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
BYOD Ease and Convenience — Connect any DP–Alt–Mode–capable USB–C device as an AV presentation source, while providing the connected device with USB 2.0 and Ethernet connection, and (if PD–2.0–capable) up to 60 watts of power, via a single USB–C cable connection only.
Convenient Display Power On/Off Control — Simply press the DISPLAY ON button to toggle on and off the power of the remote CEC–enabled display; button LED indicates the power on/off status of the remote display.
HDMI Signal Extension — Uncompressed 4K@60Hz (4:4:4) HDMI, HDCP 2.3, EDID and CEC signals are passed through from the source to the display.
HDMI Support — Supports HDR10, deep color, x.v.Color™, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0.
HDMI Mirroring — Transmitter mirrors input HDMI signal to loop output port for connecting a local monitor or adding an additional unit in a daisy chain.
Flexible USB 2.0 Extension — An active USB host is connected to the extender at either the transmitter or receiver sides. USB 2.0 signals are extended between the extender transmitter and receiver sides, enabling connection of the active USB host to both local and remote USB devices, such as camera and audio devices, or HID (Human Interface Devices) mouse or keyboard devices.
I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing, and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.
Multi–channel Audio Transmission — Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Ethernet Extension — Ethernet interface data flows in both directions allowing extension of up to 1 Gbps Ethernet connectivity for LAN communication and device control.
Bidirectional RS–232 Extension — Serial interface data flows in both directions allowing data transmission and device control.
Bidirectional Infrared Extension — IR interface data flows in both directions allowing remote control of peripheral devices located at either end of the extended line.
Cost–effective Maintenance — Status LED indicators for HDMI, Loop, HDBT, and USB active host ports, facilitate easy local maintenance and troubleshooting.
Easy and Elegant Installation — MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.

Eingang

Ausgang

Datenports

2 USB 2.0 Device: On USB type–A female connectors
1 1000BaseT Ethernet: On an RJ–45 female connector for LAN extension
1 IR: On a 3.5mm mini jack for IR extension
1 RS–232: On a 3–pin terminal block for serial extension

USB Features

Verlängerungs- leitung

Video

Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel)
Max Resolution: 4K@60Hz (4:4:4) 24bpp resolution
Content Protection: HDCP 2.3
HDMI Support: 4K as specified in HDMI 2.0b

Extended USB

Extended Ethernet

Extended RS-232

Energiebedarf

Power Adapter:
Source: 20V DC, 6A
Consumption: 20V DC, 4.35A
Max. Power: 88W
PoE
Consumption: 410mA
Max. Power: 19.7W
USB-C Charging
Max. Power: 60W
Compliance: PD 3.0
USB Device Charging
Max. Total Current: 2A

Gehäuse

Umweltbedingungen

Extended IR

Einhaltung von Vorschriften (Einhaltung von Standards)

Included

Produktabmessung

19.00cm x 11.60cm x 2.70cm (7.48" x 4.57" x 1.06" ) W, D, H

Produktgewicht

Versandabmessung

34.50cm x 21.00cm x 6.70cm (13.58" x 8.27" x 2.64" ) W, D, H

Versandgewicht
