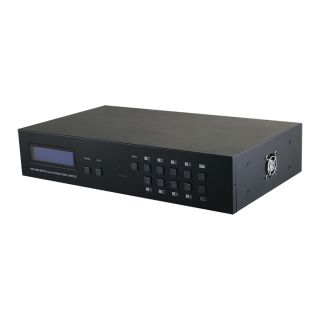

HDBaseT™ 8×8 HDMI over CAT5e/6/7 Matrix with 48V PoH and LAN Serving - Cypress CMSI-8H8CVE

HDBaseT™ 8×8 HDMI over CAT5e/6/7 Matrix with 48V PoH and LAN Serving - Cypress CMSI-8H8CVE

Artikelnummer: CMSI-8H8CVE
Kategorie: Matrices
Hersteller: Cypress Technology

The HDBaseT™ 8 by 8 HDMI over CAT5e/6/7 Matrix supports the transmission of video (resolutions up to 1080p Full HD and 1920×1200 ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The HDBaseT™ 8 by 8 HDMI over CAT5e/6/7 Matrix supports the transmission of video (resolutions up to 1080p Full HD and 1920×1200@60Hz), multi-channel digital audio and control via IR, RS- 232 or Telnet and WebGUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio as well as 3D content that can be displayed when connecting a 3DTV and 3D source. Power over Ethernet (PoE) support means that compatible receivers do not need their own power supplies allowing for greater flexibility in installations and LAN serving allows devices such as Smart TVs to be connected to the network.

HDMI, HDCP 1.1 and DVI compliant
Supports HDMI 3D features for compatible sources and displays
Supports PC resolutions of VGA to WUXGA and HDTV resolutions of 480i to 1080p dependent upon the output display’s resolution capabilities
Supports distances of up to 100m for industry standard CAT5e/6/7 cables
Supports PoE (Power over Ethernet) on compatible receivers only
Supports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution
Supports bi-directional IR passthrough from the source and display locations
Supports control of the matrix via RS-232, IR remote control, onpanel buttons and IP Control (Telnet & WebGUI)
Supports LAN serving to all compatible HDBaseT Receiverst
2U size design
Supports selection of Standard (Fixed) or TV (Downstream) EDID settings
Supports pass-through of high-definition Audio: LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Note:

1. The PoE function is designed for powering compatible receiver units only—non-PoE receivers will need their own power supply. Receivers of another brand may not be compatible.

2. Do not connect the LAN port to CAT outputs of this device or to CAT inputs or receiver. Doing so may damage the unit.

Video Bandwidth	225 MHz/6.75 Gbps
Input Ports	8×HDMI, 9×IR Extender, 1×RS-232, 1×LAN, 1×Mini USB-B Type (For firmware update only)
Output Ports	8×CAT5e/6/7, 9×IR Blaster
ESD Protection	Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge)
Main Power Supply	24 V/6.25 A DC (US/EU standards, CE/FCC/ UL certified)
PoE Power Supply	48 V/3.125 A DC (US/EU standards, CE/ FCC/UL certified)
Dimensions	438 mm (W)×255 mm (D)×92 mm (H)
Weight	4268g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage Temperature	−20 ºC~60 ºC/−4 ºF~140 ºF
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	84 W (Main), 52 W (PoE)
