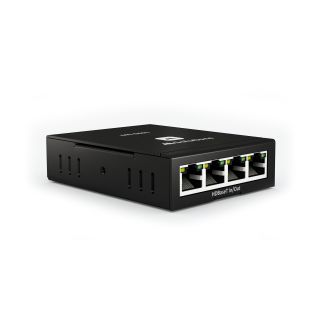

HDBaseT Switch Matrix MS-0401

Artikelnummer: MS-0401
HAN: MS-0401
Kategorie: HDBaseT™ / LAN Gateway
Hersteller: MSolutions

The MS-0401 is a 4×1 bi-directional switch module of any resolution up to 4K@60Hz (4:2:0) and all HDCP versions, with the capability of either switching one input source to 4 outputs or converging 4 input sources to one output.

313,75 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

The MSolutions 4-way HDBaseT / IP Gateway is a small form-factor unit with 5 x HDBaseT / IP ports, offering an efficient HDBaseT / IP switching platform. The unit is designed to offer two differing types of HDBaseT / IP switching, allowing for up to 4 x HDBaseT source devices (Transmitters) or IP Hosts to be linked through the MSolutions Gateway to a single HDBaseT / IP output, or for a single HDBaseT / IP input to be independently switched to the 4x HDBaseT / IP outputs. The unit can be used with any manufacturers compatible HDBaseT transmitter and receiver equipment to provide extra connectivity to larger distribution systems, or for separation of multiple units via LAN, to provide a simple, yet cost-effective switching solution.

Key Features

Inline switching of HDBaseT Transmitters or Receivers: 1 x input to 4 x selectable outputs, or, 4 x independent inputs to 1 x output
Dynamic routing of LAN connections (outside of HDBaseT spec)
Interoperability with all HDBaseT manufacturers equipment
Distances of manufacturers HDBaseT equipment maintained with switch inline
Support for all HDBaseT specifications up to HDBaseT Spec 3.0 including video, audio, ARC (audio return), control and Ethernet (based on spec of individual TX or RX attached)
Transparent to HDCP content being sent via HDBaseT – pass-through is based on the specification of the HDBaseT transmitter and receiver modules attached
Supports pass-through of all HDBaseT power formats: PoE, PoH, PoC up to 100W
Switching control via serial / RS-232
Internal galvanic separation of inputs / outputs to ensure disconnect when ports are not in use

Specifications

RJ45 connectivity (HDBaseT or LAN): 5x RJ45 – 1:4 or 4:1
RS-232 connectivity: 1 x DB9 serial – serial to USB cable included
Power supply: 5V 0.3A DC
Power consumption: 7.5W
Individual unit dimensions (W x D x H): 77 x 94 x 25mm
Individual unit weight: 0.2Kg
Package dimensions (W x D x H): 160mm x 130mm x 75mm
Package weight: 0.9kg
Master carton quantity: 18
Master carton dimensions (W x D x H): 540 x 270 x 260mm
Master carton weight: 16kg
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Operating humidity: 10-90% non condensing

Package Contents

1 x MS-0401 Switch
1 x 5V 1A power supply with US, UK & EU territory clips
1 x Serial DB9 to USB cable – 1.2m
2 x Surface mounting brackets
