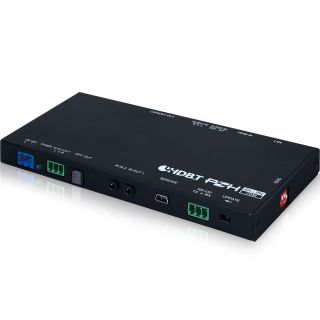

HDCP 2.2 & HDMI2.0 Extender with OAR / Audio Insertion - Cypress CH-1529TX

HDCP 2.2 & HDMI2.0 Extender with OAR / Audio Insertion - Cypress CH-1529TX

Artikelnummer: CH-1529TX
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over single CAT5e/6/7 Transmitter and Receiver set is a great solution to extend uncompressed audio/video and IP data o ...

Preis auf Anfrage

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.

Beschreibung
Frage zum Artikel

The HDMI over single CAT5e/6/7 Transmitter and Receiver set is a great solution to extend uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. Multi-control interfaces are available which includes IR, RS-232, USB and LAN connection. This new extender set complies with advanced protocols of HDCP2.2 and HDMI 2.0, the HDCP1.4 also supported. The 6G HDMI video is able to be processed. Except extend 4K2K data, it features useful audio functions. The “optical audio return” supports audio transmit back from Receiver to Transmitter. Besides, the “audio insertion” allows external audio insert to HDMI video such as background music insertion. The HDBT clock stretch and TMDS reclocking are considered. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater flexibility to fit different installation scenarios.

HDMI with HDR, 3D & 4K@60Hz support
Supports Deep Color input and output up to 12-bit
Supports CEC bypass
Simultaneous reception of uncompressed video, audio and data over a single Cat.5e/6/7 cable up to 100m/328ft at 1080p60 and 70m/230ft at 4K
HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
Support for compatible AVLC (Adaptive Visually Lossless Compression) Transmitters, allowing for the output of HDMI sources that were originally beyond 10.2Gbps (340MHz) and up to 18Gbps (600MHz) with no loss of visual quality

Interfaces
Input Port	1 x HDMI (Type-A) 1 x Audio In connector (3-pin Terminal Block) 1 x IR In 2 (3.5mm)
Output Port	1 x Optical Out 1 x Audio Out (3-pin Terminal Block) 1 x HDBaseT (RJ-45) 1 x IR Out 1 (3.5mm)
Others	1 x RS-232 1 x LAN
Service Port	1×USB 2.0 (Mini-B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.x
Input Signal Type	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0
		Resolutions
Maximum Input	HDMI	4096×2160p@60 YUV 4:2:0
Maximum Output	HDBaseT	4096×2160p@60 YUV 4:2:0

Power
Power Consumption	19.5W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions	78mm (W) x 163mm (D) x 16mm (H) Excluded jacks 78mm (W) x 183mm (D) x 16mm (H) Included rack ears
Weight	338g

Field Firmware Update
USB Flash Drive

ORDERING INFORMATION
Model No.	Product Description
CH-1529TX	HDCP 2.2 & HDMI2.0 Extender with OAR / Audio Insertion
CH-1529RX	HDCP 2.2 & HDMI2.0 Extender with OAR / Audio Insertion
