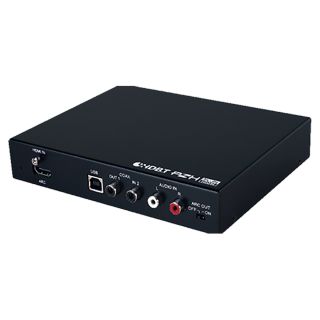

HDMI/Audio over CAT5e/6/7 Transmitter with 48V PoE - Cypress CH-1601TX

HDMI/Audio over CAT5e/6/7 Transmitter with 48V PoE - Cypress CH-1601TX

Artikelnummer: CH-1601TX
HAN: CH-1601TX
Kategorie: Extenders
Hersteller: Cypress Technology

This HDMI and Audio over Single CAT5e/6/7 Transmitter can send uncompressed audio/video along with controls, IP and USB data ove ...

498,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

This HDMI and Audio over Single CAT5e/6/7 Transmitter can send uncompressed audio/video along with controls, IP and USB data over a single run of CAT5e/6/7 cable up to 100m. It has the added benefit of control through the built-in RS-232 and IR ports and a LAN serving connection. There is a bidirectional digital audio capability that gives users the convenience of an additional audio connection. This system also allows the connection of any USB host, enabling USB signal transmission and an analog L/R audio input for external audio extending. The 48V PoE design can power the compatible Receiver (PD), eliminating the need for a separate power supply for the Receiver.

Supports HDBaseT 2.0 specification supporting over a single CAT6/7 cable up to 100m/328ft and CAT5e cable up to 90m/295ft
HDMI (with 3D & 4Kx2K support), HDCP and DVI compliant
HDBaseT 5Play™ convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, PoE and Control (Bidirectional IR/RS-232 pass-through)
Supports pass-through of audio formats: LPCM2/5.1/7.1CH, Dolby Digital 2~5.1Ch, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
Supports coaxial cable up to 1 meter with sampling rate up to 48kHz
Supports 10/100 Ethernet network connection
LAN and external digital audio capability
Supports RS-232 baud rate up to 115200bps

Interfaces
Input Port	1 HDMI (Type-A) 1 LAN (RJ45) 1 RS-232 (DB-9) 1 IR (3.5mm) 1 USB (Type-B) 1 Coaxial (Female) 1 L/R (RCA)
Output Port	1 HDBaseT(RJ45) 1 IR (3.5mm) 1 Coaxial (Female)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096x2160p@60 YUV 4:2:0
Maximum Output	CAT5e/6/7	4096x2160p@60 YUV 4:2:0

Power
Power Supply	48VDC/0.83A (US/EU standards, CE/FCC/ UL certified)
Power Consumption	9w

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	160mm x 30mm x 130mm / Jacks Excluded 165mm x 33mm x 141mm / Jacks Included
Weight	624g

Field Firmware Update
Interfaces	PC

Ordering Information
Model No.	Product Description
CH-1601TX	HDMI/Audio over CAT5e/6/7 Transmitter with 48V PoE
CH-1601RX	HDMI/Audio over CAT5e/6/7 Receiver
