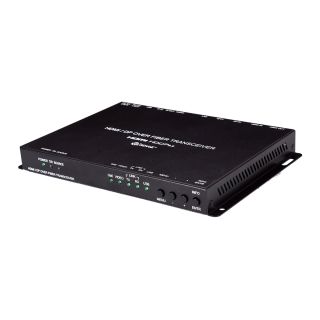

HDMI/DP over IP Transceiver (Fiber Version) - Cypress COH-TR6

HDMI/DP over IP Transceiver (Fiber Version) - Cypress COH-TR6

Artikelnummer: COH-TR6
HAN: COH-TR6
Kategorie: AV Over IP
Hersteller: Cypress Technology

This Transceiver is designed for high-quality, IP routable, AV extension with zero latency. Each single Transceiver can be confi ...

1.499,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This Transceiver is designed for high-quality, IP routable, AV extension with zero latency. Each single Transceiver can be confi gured as either a Transmitter or a Receiver depends the requirement of installation facility. The 4K@60 high quality video with HDR 10 bits and multi-channel HD Bitstream audio are able to transmit in pass through mode over SFP+ fi ber module up to 30km extension.

Visually lossless compression with zero latency
Video wall and multi viewer supported (requires optional control center/software)
USB KVM extension supported
Pass-through of 10/12-bit HDR sources (Genlock modes only)
Pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI sources
Analog stereo audio extension, insertion and extraction (optional control center/software)
Expanded functionality (Contact your authorized dealer for more information)

Interfaces
Input Port	1×HDMI (Type-A) 1×DisplayPort
Output Port	1 HDMI (Type-A)
Bi-directional Port	1 10GbE LAN (SFP+)
Control I/O	1 IR Blaster (3.5mm) 1 RS-232 (3-pin Terminal Block) 1 Ethernet (RJ-45)
Audio	1 Unbalanced Stereo (3.5mm) Transmitter: Auido In or Out (depends confi guration) Receiver: Audio Out
Service Port	USB (Mini-B)

Video
HDMI Compliance	2.0 (DP 1.4)
HDCP Compliance	2.X
Input Signal Type	4096x2160p@60, 8bit YUV 4:4:4, HDR10
Output Signal Type	4096x2160p@60, 8bit YUV 4:4:4, HDR10

Resolutions
Maximum Input	HDMI	4096×2160p@60 2560×1600p@60RB
	DisplayPort	4096×2160p@60 2560×1600p@60RB
	Ethernet	4096×2160p@60 2560×1600p@60RB
Maximum Output	HDMI	4096×2160p@60 2560×1600p@60RB
	Ethernet	4096×2160p@60 2560×1600p@60RB

Audio
Digital Formats	HDMI	8CH LPCM, Bitstream, HD Bitstream
	DisplayPort	8CH LPCM, Bitstream, HD Bitstream
Analog Formats	Unbalanced	2 Channel
Line Level	Frequency Response: < ±0.5dB (20Hz to 20kHz) THD: < 0.02% (20Hz to 20kHz) S/N Ratio: > 80dB (1kHz with 0dBFS) Crosstalk: < −80dB (10kHz, Vin=0dBFS)

Power
Power Supply	12V/3A (Locking)
Power Consumption	25W(Full load)

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×166.7mm [All Inclusive]
Weight	916g

Ordering Information
Model No.	Product Description
COH-TR6	HDMI/DP over IP Transceiver (Fiber Version)
COH-RX5	AV over IP Master Controller
