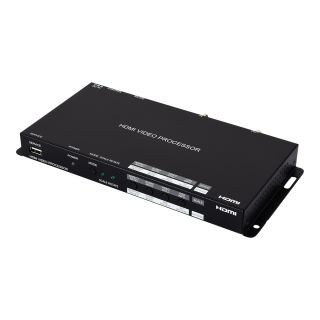

HDMI Video Wall Rotation Processor - Cypress CLUX-1HLR

HDMI Video Wall Rotation Processor - Cypress CLUX-1HLR

Artikelnummer: CLUX-1HLR
HAN: CLUX-1HLR
Kategorie: Scaler
Hersteller: Cypress Technology

This HDMI Video Wall Rotation Processor is an ideal solution for presenting sources across the unique video display arrangement ...

496,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This HDMI Video Wall Rotation Processor is an ideal solution for presenting sources across the unique video display arrangements often found in commercial displays, control rooms, or classrooms. HDMI Input and output resolutions up to 1080p@60Hz with LPCM audio up to 7.1 channels at 192kHz are supported. In Rotation Mode the output is locked to 1080p, but video latency is only 1 to 2 frames and the unit is capable of scaling and rotating the source, with an accuracy of 1°, as required. In Scaler Mode, the unit can scale to a selection of output resolutions, up to 1080p@60Hz as well as apply video mirror, flip and freeze effects to the output.

By combining multiple units with an HDMI splitter or matrix it is possible to create fantastically varied arrangements of rotated displays for large video wall applications. This is perfect for creating distinct and eye-catching advertising or promotional displays limited only by your imagination. Configuring these large video walls is made simple by use of our Video Wall PC application, allowing the user to visually lay out and configure the entire video wall at one time in a graphical WYSIWYG user interface.

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
Only 1 to 2 frames of video latency
Supports horizontal/vertical video warping with zooming in/out and 360 degree display rotation in 1° increments (Rotation Mode)
Video mirror, flip, and freeze (Scaler Mode)
Wide variety of video adjustments, including: contrast, brightness, hue, sharpness, aspect ratio
Custom EDID management
Basic control of the unit is provided by front panel controls with an informational OSD
Complete control of the unit is accomplished by use of Telnet, RS-232 or the Video Wall PC software

Interfaces
Input Port	1 HDMI (Type-A)
Output Port	1 HDMI (Type-A)
Control I/O	1 RS-232 (DE-9) 1 LAN (RJ-45)

Video
HDMI Compliance	HDMI 1.3
HDCP Compliance	1.4
Input Signal Type	1920x1080p@60 12-bit YUV 4:4:4
Output Signal Type	1920x1080p@60 12-bit YUV 4:4:4
		Resolutions
Maximum Input	HDMI	1920×1200@60Hz
Maximum Output	HDMI	1920×1200@60Hz

Power
Power Supply	5V/2.6 DC
Power Consumption	5.9W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×117mm [All Inclusive]
Weight	652g

Field Firmware Update

ORDERING INFORMATION
Model No.	Product Description
CLUX-1HLR	HDMI Video Wall Rotation Processor
