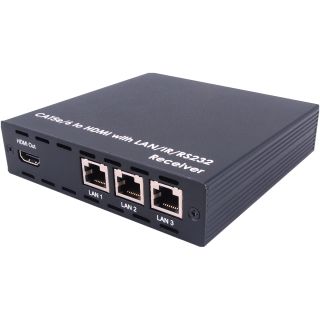

HDMI over CAT5e/6/7 Receiver with 24V PoC and 3 LAN Serving - Cypress CH-1109RXC

HDMI over CAT5e/6/7 Receiver with 24V PoC and 3 LAN Serving - Cypress CH-1109RXC

Artikelnummer: CH-1109RXC
HAN: CH-1109RXC
Kategorie: Extenders
Hersteller: Cypress Technology

The CH-1109TXC & RXC set features 5-Play™ HDBaseT™ technology. This will allow the user to distribute uncompressed HDMI™ (audi ...

264,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The CH-1109TXC & RXC set features 5-Play™ HDBaseT™ technology. This will allow the user to distribute uncompressed HDMI™ (audio/video), 2-Way IR, 2-Way RS-232, PoE and 3 individual Ethernet connections over a single CAT5e/6/7 up to a distance of 100m.

HDMI 1.4 compliant with 3D formats and 4k×2k resolution support
Supports CEC bypass function
Simultaneous transmission of uncompressed video and audio (1080p@60Hz/-Deep Color) over a single CAT5e/6 type cable for up to 100m (300ft.)
Audio support up to 7.1CH Dolby TrueHD and DTS-HD Master Audio
Connect and share up to 6 Ethernet connections at speeds up to 100Mbps
Various controls over HDMI: CEC, RS232 and IR
5Play™ convergence: HD video, audio & Control ports (IR and RS232)/LAN/PoC
Installation friendly
Single power supply powers both units, receiver unit is powered through the transmitter

Video Bandwidth	300 MHz/9 Gbps
Ethernet Speed	100 Mbps
Input	1×CAT5e/6 1×IR Extender
Output	1×HDMI 1×RS-232 3 ×Ethernet 1×IR Blaster
HDMI In/Out Cable Distance	Up to 10 Meters
CAT6 In/Out Cable Distance	Up to 100 Meters
HDMI In/Out Supports Resolution	480i~1080p@50/60 1080p@24 VGA~WUXGA
IR Frequency	30~50 kHz
ESD Protection	Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Power Supply	24 V/1.25 A DC (US/EU Standards, CE/FCC/ UL certified)
Dimensions	125 mm(W) x 127 mm (D) x 30 mm (H)
Weight	382 g (RXC)
Chassis Material	Aluminum
Silkscreen Color	Black
Power Consumption	8W
Operating Temperature	0˚C~40˚C/32˚F~104˚F
Storage Temperature	−20 ˚C~60 ˚C/−˚F~140 ˚F
Relative Humidity	20~90 % RH (non-condensing)

HDCP:	HDCP konform
Übertragungsprotokoll:	HDBaseT
Service:	1 Jahr Bring-In-Service
Spannungsversorgung:	PoC (24 V)
Signalausgänge:	Infrarot RS-232 HDMI 100 Mbit Netzwerk
(Maximale) Kabellänge:	100 m
Auflösung (maximal/nativ):	4K/2K
Signaleingänge:	Twisted Pair (Netzwerkkabel)
Artikelgewicht:	0,38 kg
Abmessungen(LxBxH) ( Länge × Breite × Höhe ):	12,70 × 12,50 × 3,00 cm
