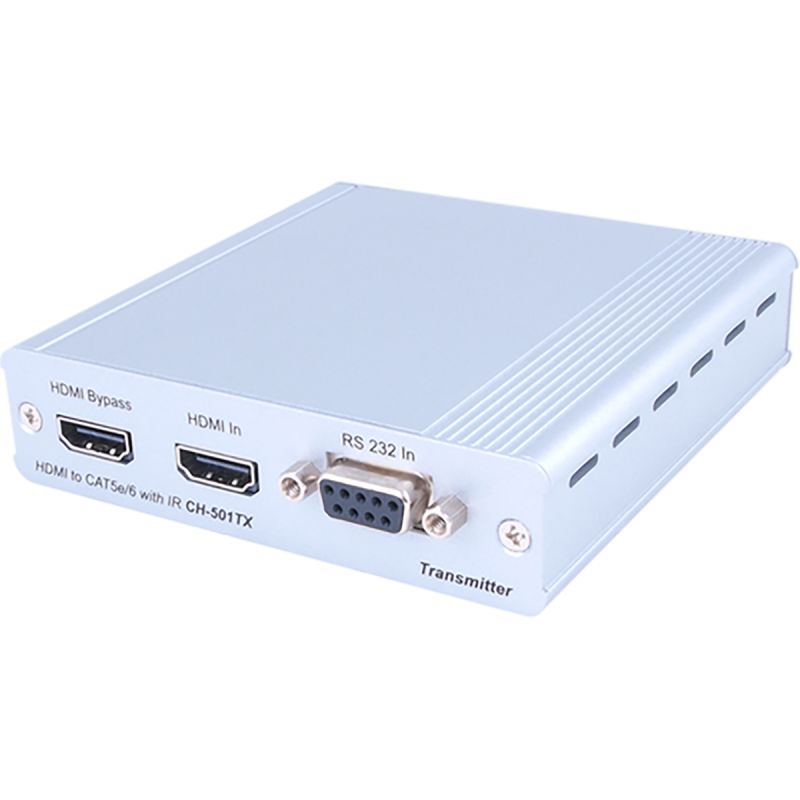

HDMI over CAT5e/6/7 Transmitter with HDMI Bypass Output - Cypress CH-501TX

HDMI over CAT5e/6/7 Transmitter with HDMI Bypass Output - Cypress CH-501TX

Artikelnummer: CH-501TX
Kategorie: Extenders
Hersteller: Cypress Technology

The HDMI over Single CAT5e/CAT6 with IR transmitter and receiver set can make your home or office set-up more efficient and eas ...

288,00 €

exkl. 19% USt. , (Standard)

Knapper Lagerbestand
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The HDMI over Single CAT5e/CAT6 with IR transmitter and receiver set can make your home or office set-up more efficient and easy to use. Uncompressed HDMI video and audio can be transmitted over a single CAT5e/CAT6 with the added benefit of control through the built-in RS-232 and IR ports up to 100m. It also features a HDMI bypass function that allows for local testing of the HDMI source.

Supports HDMI with 3D and 4K2K support, HDCP and DVI compliant
Supports CEC bypass function
Simultaneous transmisson of uncompressed data up to 100 m/328 ft for CAT5e or CAT6 cable
Uncompressed video 1080p, 60 Hz, 36-bit
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio
Various controls over HDMI, CEC, RS232 and IR
3Play convergence: HD video, audio & Control (IR & RS232)
Installation friendly

Video Bandwidth	300 MHz/9 Gbps

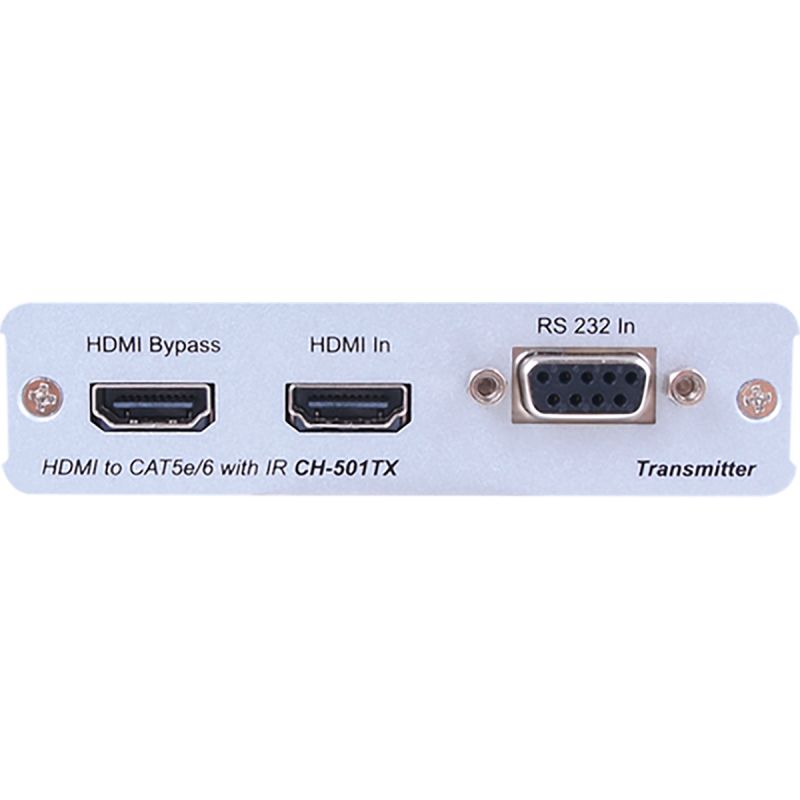

Input	1×HDMI, 1×IR Extender, 1×RS-232

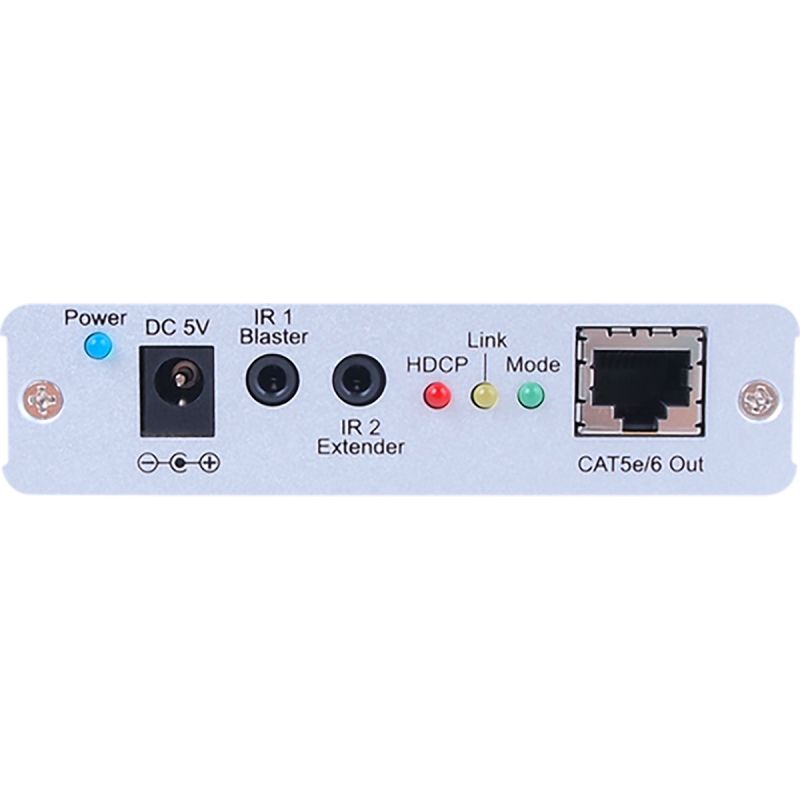

Output	1×CAT5e/6, 1×HDMI Bypass, 1×IR Blaster
CAT6 Cable Distances	100m (1080p@60Hz, 12-bit) 70m (4K@60Hz, 4:2:0, 8-bit)
HDMI Cable Distances	10m (1080p@60Hz, 12-bit) 5m(4K@60Hz, 4:2:0, 8-bit)
HDMI Resolutions	480i~4K@60Hz (YUV 4:2:0, 8-bit) & VGA~WUXGA@60Hz(RB)
IR Frequency	30~50 kHz
Power Supply	5 V/2.6 A DC (US/EU Standards, CE/FCC/UL certified)
ESD Protection	Human Body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions	102 mm (W)×107 mm (D)×25 mm (H)
Weight	245g
Chassis Material	Aluminum
Silkscreen Color	Silver
Operating Temperature	0 °C~40 °C/32 °F~104 °F
Storage Temperature	−20 °C~60 °C/−4 °F~140 °F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	6W
