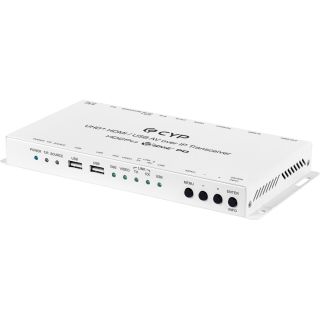

This Transceiver is designed for high-quality, IP routable, AV extension with minimum latency. Every Transceiver can be confi gured to function as either a Transmitter or a Receiver, enhancing the fl exibility of any installation. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K HDMI audio/video streams and data. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. The use of high quality 10-Gigabit Ethernet ports and Cat.6A cable allows for point-to-point transmission of the video signal up to 100m. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and Ethernet.
When combined with the optional control center or control software, the functionality of the Transceiver expands exponentially. Multiple Transceivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multi-viewer system, or a video wall system adding to their fl exibility in large event installations. The integrated USB hub of each Transceiver can be confi gured to be in USB Host or Device Mode and can function as a simple point to point KVM extension, freely routed between any two endpoints, or it can be confi gured into a special “Simultaneous” mode, allowing up to 7 Host Mode Transceivers to extend their USB ports to a single Device Mode Transceiver. This type of USB KVM routing flexibility enables a wide range of multi-user, control room, or on-demand installation scenarios.
The unit may be powered directly by PoE when connected via Cat.6A to a 10-Gigabit Ethernet switch that provides PoE (802.3at) allowing for great flexibility in installation location. The built-in EDID and HDCP management functionality enables the unit to fi t into every situation. Basic confi guration of the unit can be achieved via front panel buttons with an On-Screen Display (OSD). Advanced control requires optional control center, or control software, and a LAN connection.
