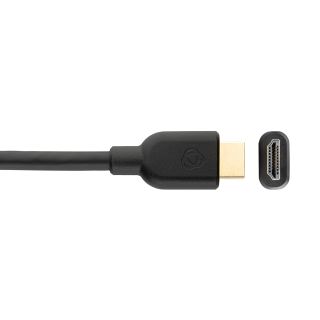

High-Speed HDMI Cable

Artikelnummer: KRA-97-0140035
EAN: 7291063100605
HAN: CT-HM-35
Kategorie: Standardkabel
Hersteller: Kramer

HDMI |

57,09 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

Kramer's CT−HM HDMI cable delivers high−speed, high−performance digital video and audio with impeccable impedance stability, low skew, high signal integrity, and noise immunity for up to 4K@60Hz (4:4:4).

Max. Data Rate — 18Gbps
Max. Resolution — 4K@60Hz (4:4:4)
Deep Color — Supports 24–bit, 30–bit, 36–bit and 48–bit (RGB or YCbCr) color depths
Multi–Channel Audio Support — Supports audio stream for external decoding by AV receivers and automatic audio syncing capabilities.
High Quality Connectors — 24K gold–plated, corrosion–resistant and best possible connectivity.
Shield — Triple overall shield against EMI/RFI interference
Varied Selection of Lengths — Available in versions of 3ft, 6ft, 10ft, 15ft, 25ft, 35ft.

Video

Max Resolution for 3–15ft (.9–4.6m) lengths: 4K@60Hz (4:4:4)
Max Resolution for 25–35ft (7.6–10.7m) lengths: 4K@60 (4:2:0)
Max Data Rate for 3–15ft (.9–4.6m) lengths: 18 Gbps
Max Data Rate for 25–35ft (7.6–10.7m) lengths: 8.91 Gbps
Supported Color Spaces: RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020
HDMI Compliance: HDR,HDCP 2.2, EDID and CEC

Audio

PHYSICAL

Leitungen

Material: Tinned/Bare Copper
3–6ft (.9–1.8m) lengths: 30AWG (1/0.254)
10ft (3m) lengths: 28AWG (1/0.32)
15ft (4.6m) lengths: 26AWG (1/0.4)
25-35ft (7.6-10.7m) lengths: 28AWG (1/0.32)

SCREENING

Ummantelung

Material: PVC
Color: Black
Diameter for 3–6ft (.9–10.7m) lengths: 6. 0 ± 0.15mm
Diameter for 10ft (3m) lengths: 7.3 ± 0.2mm
Diameter for 15ft (3m) lengths: 8 ± 0.2mm
Diameter for 25-35ft (7.6-10.7m) lengths: 7.3 ± 0.2mm
Cable Bending Radius for 10ft, 25ft, 35ft (3m,7.6m,10.7m) lengths: 73mm
Cable Bending Radius for 3ft-6ft (0.9m-1.8m) lengths: 60mm
Cable Bending Radius for 15ft, (4.6m) lengths: 80mm

Elektrisch

Temperature Rating: 80°C
Voltage Rating: 30V
Conductor Resistance – 30AWG: 361Ω/km MAX. at 20°C (68°F)
Conductor Resistance – 28AWG: 227Ω/km MAX. at 20°C (68°F)
Conductor Resistance – 26AWG: 143Ω/km MAX. at 20°C (68°F)

Umweltbedingungen

Einhaltung von Vorschriften (Einhaltung von Standards)

Angaben zur Produktsicherheit

Herstellerinformationen:

Kramer Germany GmbH
Gladbacher Straße 17
Heinsberg, , 52525
info_de@kramerav.com
https://www.kramerav.com/de

Versandgewicht:	0,79 kg
