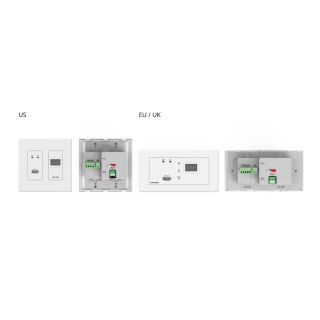

High-performance, highly scalable, AVoIP Wall Plate Decoder for 4K over 1G Network, with white Decora® Design Frame Sets

1.378,30 €

exkl. 19% USt. ,

Stk

WP−DEC7 is an advanced decoder for streaming 4K video signals via Ethernet over copper cable.

Video Streaming Receiver — Streams up to 4K@60Hz (4:2:0) resolution signals over a 1G network interface.
Streaming Support — Unicast and multicast.
Analog Audio De–Embedding Output — Extract the HDMI audio or LAN streaming audio and output it as balanced analog audio.
Convenient and Comprehensive Control — Control the unit using intuitive embedded web pages, Protocol 3000 API commands via Ethernet or front panel LCD and buttons.
Control Gateway — Through P3K or special TCP connection, user could control/communicate with RS232 and CEC to the connected devices.
Video Wall — Up to 16x16 size.
PoE Support — Option to power with PoE connection from a PoE switch

Ausgang

Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
Unicast: Through RTSP (Real Time Streaming Protocol)
Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

Supported Formats: LPCM, Dolby and DTS
LPCM: LPCM upto 7.1/24–bit/192kHz
Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1

Angaben zur Produktsicherheit

Herstellerinformationen:

Kramer Germany GmbH
Gladbacher Straße 17
Heinsberg, , 52525
info_de@kramerav.com
https://www.kramerav.com/de

Versandgewicht:	0,60 kg
