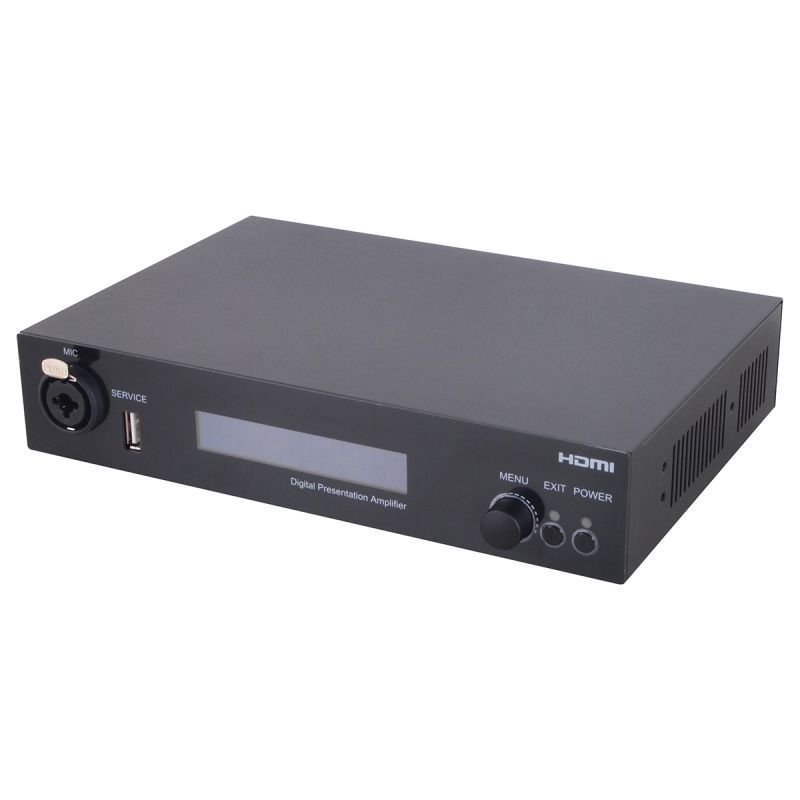

Integrated Zone Amplifier - Cypress DCT-23

Integrated Zone Amplifier - Cypress DCT-23

Artikelnummer: DCT-23
HAN: DCT-23
Kategorie: Amplifier
Hersteller: Cypress Technology

The Integrated Zone Amplifier accepts analog and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digi ...

591,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The Integrated Zone Amplifier accepts analog and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital, and HDMI with an additional microphone input. As well as speaker outputs, it boasts line level output, optical and digital outputs, and HDMI outputs for wider systems integration. Suitable for use at musical events, sound presentation and sound amplification. With output audio sampling rate support up to 48 kHz and I/O data rate support up to 24-bit, it provides a high quality sound reproduction.

30 watts per channel Digital Stereo Amplifier
Supports Digital to Analog audio Conversion (DAC) and Analog to Digital audio Conversion (ADC)
HDMI audio embedding and de-embedding
Supports input audio sampling rates up to 96 kHz and output at 48 kHz
Supports HDMI audio sampling rates loop-through and video bypass output
Supports a wide range of resolutions from 480i to 1080p and VGA to WUXGA(RB)
Dedicated XLR microphone input with independent volume control
Supports microphone sound being embedded into video output
Simultaneous output of sound on both digital and analog
Analog line output selectable to be either fixed or variable output level
Supports control via IR (Remote and IR Extender input), RS-232 or IP (Telnet/WebGUI)
Compact design and easy to use

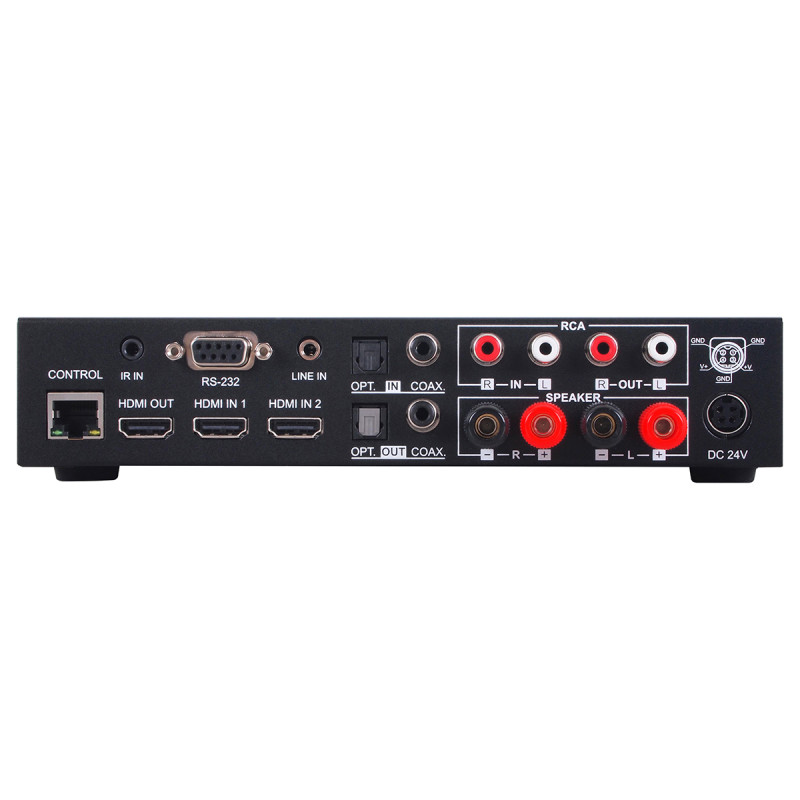

Interfaces

HDMI ARC port

2 HDMI

1 Optical

1 Coaxial

1 3.5mm Mini-jack

2 RCA (Analog Stereo)

1 Microphone

1 D-sub 9-pin (RS-232)

1 RJ-45 (Control)

1 IR Extender

Output Port

1 HDMI

1 Optical

1 Coaxial

2 RCA (Analog Stereo)

1 Speaker

Audio
Digital Audio Input/Output	LPCM 2CH
Stereo Input/Output Level	2 Vrms ± 0.2
HDMI Cable Distance	Up to 15m@1080p/12-bit
IR Frequency	38 kHz
ESD Protection	Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)

Power
Power Supply	24 V/3.75 A DC
Power Consumption	82.5W
Power Output	30 W/Channel@8 ohm (0.1% THD+N)

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	215mm x 172.5mm x 46mm [Case Only]
Weight	1060g

ORDERING INFORMATION
Model No.	Product Description
DCT-23	Integrated Zone Amplifier
