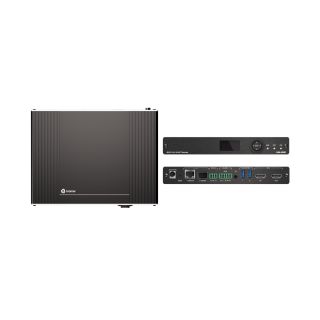

KDS 17DEC 4K60 4:4:4 AVoIP Decoder with Dante

KDS 17DEC 4K60 4:4:4 AVoIP Decoder with Dante

Artikelnummer: KRA-60-001690
EAN: 7291063100032
HAN: KDS-17DEC
Kategorie: AV Streamers
Hersteller: Kramer

1.154,55 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

KDS−17DEC 4K60 4:4:4 AVoIP Decoder for streaming 4K video and audio signals, via Ethernet over copper cable or fiber in unicast (one−to−one) or multicast (one−to−many) configurations. Supports digital Dante, USB, IR, RS−232 or CEC signals.

Outstanding end–user experience — Present video in superb 4K60 4.4.4 resolution, with best–in–class digital audio. With KDS–17, every visual detail and every nuance of sound comes through super–clearly. Enjoy extensive control of video walls, advanced connectivity options, and a wide choice of inputs/outputs and settings options.
Ideal for large–scale deployments — Provide a high–performance solution fine tuned to the needs of large enterprise, education and government sites, with integrated advanced management capabilities and support for many simultaneous video streams.
Easy planning and deployment — Easily and confidently integrate the AV solution into any IP network. Create A/V–enabled spaces of varying sizes swiftly and effortlessly, even without prior AV expertise. KDS–17 is very bandwidth–efficient, allowing you to leverage your IT infrastructure without perceptible network performance disruptions. Use of the existing IT network and Ethernet cabling, simplified switch configurations, and reduced dependence on skilled technicians save deployment time and cost.

Eingang

Ausgang

Datenports

1 Ethernet: On an RJ–45 connector
1 Ethernet: On an SFP optical/copper transceiver port
1 Balanced Audio: On a 5–pin terminal block connector
1 RS-232: On a 3–pin terminal block connector
1 IR: On a 3.5mm TRS connector

USB

Network

Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
Unicast: Through RTSP (Real Time Streaming Protocol)
Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

Video

Compression Standard: JPEG2K–Like, private stream
Max Resolution: 4K@60Hz (4:4:4)
HDR10: Up to 4K30 4:2:2 12 bit
HDCP: 1.4 and 2.2 support
EDID: Passthrough, output resolution, predefined default EDID, custom EDID

Resolution

4096x2160@60Hz, 1600x1200@60Hz, 1280x800@60Hz, 848x480@60Hz,
3840x2160@60Hz, 1680x900@60Hz, 1280x800@60Hz, 800x600@60Hz,
1920x1200@50Hz, 1440x900@60Hz, 1280x768@70Hz, 720x576@60Hz,
1920x1080@60Hz, 1400x1050@60Hz, 1280x720@60Hz, 720x480@50Hz,
1856x1392@60Hz, 1366x768@60Hz, 1224x768@60Hz, 640x480@60Hz
1792x1344@60Hz, 1360x768@60Hz, 1152x864@70Hz, 640x400@85Hz,
1680x1050@60Hz, 1024x768@60Hz, 640x350@85Hz

Audio

Supported Formats: LPCM, Dolby and DTS
LPCM: LPCM upto 7.1/24–bit/192kHz
Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
DTS: DTS–HD Master Audio, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1
Dante Digital Audio: 2 IN and 2 OUT audio mono channels

Security

Bedienoberfläche

Indicators: LINK, NET and ON LEDs, front panel LCD Display
Rear Panel: Restart and factory reset button
Controls: Embedded web pages, P3K API commands via Ethernet, front panel navigation buttons

Energiebedarf

Umweltbedingungen

Einhaltung von Vorschriften (Einhaltung von Standards)

Gehäuse

Produktabmessung

18.90cm x 14.50cm x 2.76cm (7.44" x 5.71" x 1.09" ) W, D, H

Produktgewicht

Versandabmessung

31.20cm x 17.90cm x 7.60cm (12.28" x 7.05" x 2.99" ) W, D, H

Versandgewicht
