KDS-17EN-SW2 2x1 4K60 4:4:4 AVoIP Switcher Encoder with Dante

KDS-17EN-SW2 2x1 4K60 4:4:4 AVoIP Switcher Encoder with Dante

Artikelnummer: KRA-60-001790
EAN: 7291063100261
HAN: KDS-17EN-SW2
Kategorie: AVoIP Extender
Hersteller: Kramer

New

1.423,05 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

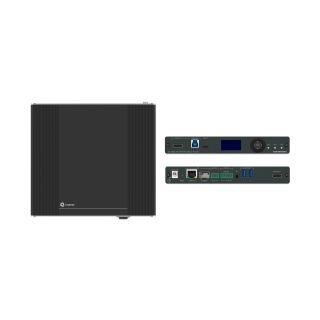

KDS−17EN−SW2 2x1 4K60 4:4:4 AVoIP Switcher Encoder with Dante for streaming 4K video and audio signals, via Ethernet over copper or optical cable in unicast (one−to−one) or multicast (one−to−many) configurations. Supports audio Dante, USB, IR, RS−232 or CEC signals.

Outstanding end–user experience — Present video in superb 4K60 4.4.4 resolution, with best–in–class digital audio. With KDS–17, every visual detail and every nuance of sound comes through super–clearly. Enjoy extensive control of video walls, advanced connectivity options, and a wide choice of inputs/outputs and settings options.
Ideal for large–scale deployments — Provide a high–performance solution fine tuned to the needs of large enterprise, education and government sites, with integrated advanced management capabilities and support for many simultaneous video streams.
Easy planning and deployment — Easily and confidently integrate the AV solution into any IP network. Create A/V–enabled spaces of varying sizes swiftly and effortlessly, even without prior AV expertise. KDS–17 is very bandwidth–efficient, allowing you to leverage your IT infrastructure without perceptible network performance disruptions. Use of the existing IT network and Ethernet cabling, simplified switch configurations, and reduced dependence on skilled technicians save deployment time and cost.

Eingang

Ausgang

Datenports

1 Ethernet: On an RJ–45 connector
1 Ethernet: On an SFP optical/copper transceiver port
1 Balanced Audio: On a 5–pin terminal block connector
1 RS-232: On a 3–pin terminal block connector
1 IR: On a 3.5mm TRS connector

USB

1 USB-B Host: Connecting USB 3.0 PC/Laptop
1 USB-C Host: Connecting USB 3.0 PC/Laptop. Charges connected hosts that support USB Power Delivery 2.0, up to 60W, when the device is powered by the optional PS–2006 20V DC power adapter
2 USB-A Devices: Connecting USB 3.0 local devices
1 Level USB Hub: When connecting to KDS–17DEC

Network

Multicast: Through RTSP (Real Time Streaming Protocol): IGMP snooping non–blocking, Layer 2
Unicast: Through RTSP (Real Time Streaming Protocol)
Bitrate: Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

Video

Compression Standard: JPEG2K–Like, private stream
Max Resolution: 4K@60Hz (4:4:4)
HDR 10: Up to 4K30 4:2:2 12 bit
EDID: Passthrough, output resolution, predefined default EDID, or custom EDID

Resolution

4096x2160@60Hz 1600x1200@60Hz 1280x960@60Hz 848x480@60Hz
3840x2160@60Hz 1600x900@60Hz 1280x800@60Hz 800x600@60Hz
1920x1200@50Hz 1440x900@60Hz 1280x768@60Hz 720x576@60Hz
1920x1080@60Hz 1400x1050@60Hz 1280x720@60Hz 720x480@50Hz
1856x1392@60Hz 1366x768@60Hz 1224x768@70Hz 640x400@85Hz
1792x1344@60Hz 1360x768@60Hz 1152x864@70Hz 640x350@85Hz
1680x1050@60Hz 1024x768@60Hz

Audio

Supported Formats: LPCM, Dolby and DTS
LPCM: LPCM upto 7.1/24–bit/192kHz
Dolby: Dolby AtmosTM, Dolby TrueHD, Dolby Digital PlusTM, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0
DTS: DTS–HD Master AudioTM, DTS–HD, DTS–ES Discrete 6.1, DTS–ES Matrix 6.1, DTS Digital Surround 5.1

Security

Bedienoberfläche

Indicators: LINK, NET and ON LEDs, front panel LCD Display
Rear Panel: Restart and factory reset rear panel button
Controls: Embedded web pages, P3K API commands via Ethernet, front panel navigation buttons

Energiebedarf

PoE+: 37V to 57V, maximum power 15W
Optional power supply: 20V DC, 6A
Optional power supply: Charger PS–2006 is required when using USB–C to charge connected hosts that support USB Power Delivery 2.0, up to 60W

Umweltbedingungen

Einhaltung von Vorschriften (Einhaltung von Standards)

Gehäuse

Produktabmessung

18.90cm x 17.30cm x 2.76cm (7.44" x 6.81" x 1.09" ) W, D, H

Produktgewicht

Versandabmessung

31.00cm x 22.00cm x 60.00cm (12.20" x 8.66" x 23.62" ) W, D, H

Versandgewicht
