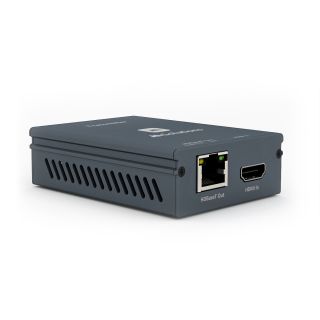

MS-106B HDBaseT Spec 3.0 Modules

Artikelnummer: MS-3000
Kategorie: Test & Troubleshooting
Hersteller: MSolutions

HDBaseT Spec 3.0 Modules – TX and RX unit – HDBaseT Spec 3.0 based

695,00 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

HDBaseT Spec 3.0 is the most recent and technically advanced profile for HDBaseT systems. Where HDBaseT 1.0 addresses only the physical and link layers of HDBaseT switching and Spec 2.0 adds networking, switching, and control-point capabilities, Spec 3.0 provides 4K 4:4:4 60 frames 18G uncompressed transmission. Among other enhancements, it improves performance margin and optimizes existing infrastructures and bandwidth. The new Spec 3.0 module, available for use with the MS-TestPro, enables users to test and certify all the added functions and capabilities of HDBaseT Spec. 3.0 systems with the same unsurpassed level of quality and reliability that the MS-TestPro is known for among HDBaseT 1.0 installers and integrators.

Key Features

Expansion module for the MS-TestPro 106B
Adds capability for HDBaseT 3.0 functionality testing on the MS-TestPro MS-106B

Specification

TX & RX modules to fit into MS-106B MS-TestPro tester
Individual unit dimensions (W x D x H): 60mm x 84mm x 25mm
Individual unit weight: 0.1kg
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Operating humidity: 0-80% non condensing

Package Contents

1 x MS-TestPro transmitter module – HDBaseT Spec 3.0
1 x MS-TestPro receiver module – HDBaseT Spec 3.0
