MS-10xB DC Resistance & Looper Modules

Artikelnummer: DCR
Kategorie: Test & Troubleshooting
Hersteller: MSolutions

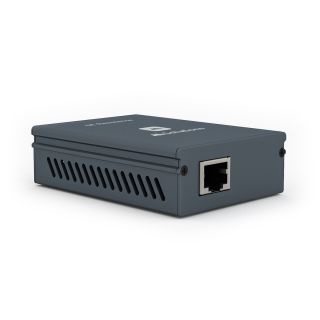

DC Resistance & Looper Modules - measures DC Resistance of CATx cables, to check ability to provide a sufficient level of PoE / PoH (Power over HDBaseT) powering

395,00 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

The optional MS-TestPro DC Resistance and Looper modules, can be used to qualify the DC resistance of a CATx link, and to check the cables ability to provide a sufficient level of PoH (Power over HDBaseT). The DCR will check for: 1. Loop Resistance which represents the DC loop resistance in Ohm (Ω) of a cable, and is calculated as the sum of the DC resistance of the two conductors in a pair. 2. Parallel DC Resistance Unbalanced for the parallel resistance of the CATx two conductors in each cable pair. For each pair, the difference is expressed in ohms (Ω). Finally, 3. Pair-to-Pair Resistance Unbalanced which is the difference in DC resistance between all four twisted pairs in the cable. For each pair, the difference is expressed in ohms (Ω).

Key Features

Expansion module for the MS-TestPro 104B
Adds capability for DC Resistance testing on the MS-TestPro MS-104B
For use with HDBaseT, IP, and PoE infrastructures
Tests for DC Loop Resistance (in ohms), Unbalanced Parallel DC Resistance, and Unbalanced Pair to Pair Resistance
Tests for PoE to IEEE 802.3bt standard

Specifications

DCR & Looper modules to fit into MS-104B MS-TestPro tester
DCR module dimensions (W x D x H): 60mm x 84mm x 25mm
DCR module weight: 0.1kg
Looper module dimensions (W x D x H): 60mm x 33mm x 25mm
Looper module weight: 0.1kg
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Operating humidity: 0-80% non condensing

Package Contents

1 x DC Resistance Module
1 x Looper Module
