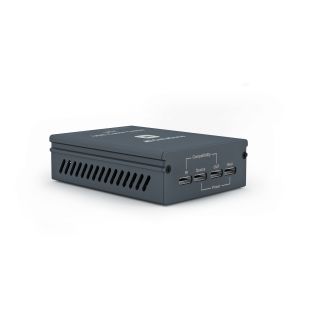

MS-10xB USB-C Cable Test Module

Artikelnummer: UCT
HAN: UCT
Kategorie: Test & Troubleshooting
Hersteller: MSolutions

USB Cable Test Module (UCT) Optional Module

474,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

he MSolutions USB cable test module allows for integrators to gain a deeper understanding of their USB connectivity through qualificaion of the cabling used within installations. The tester allows for the DC measurement of the internal wiring. Determine the USB-C features, USB2.0 (480Mbps), USB3.1 (Gen1 up to 5Gbps), USB3.1 (Gen2 up to 10Gbps), charging, monitor/laptop power, audio support, video and quality. The module has the capability of providing accurate test measurements for the following USB cable types: USB-C to USB-C connections, USB-C to USB3.0 (Type A) connections, USB3.0 (Type B) to USB3.0 (Type A) connections. The tester will identify and qualify the USB version that the cable has been manufactured to (i.e. 1.0, 1.1, 2.0, 3.0, DP, ETH)

The module has the capability to measure the power consumption of a USB device by connecting the module between the USB device and the Host – which will allow for the user to view the power draw by the device from the Host.

Key Features

Expansion module for the MS-TestPro 104B
Adds capability for USB Cable testing on the MS-TestPro MS-104B
Tests for passive USB cabling data speeds, compliance and power
Quick, simplified USB cable troubleshooting
Expands testing coverage for integrators – save time and money
Fast report generation in .pdf format

Specifications

UCT module dimensions (W x D x H): 60mm x 85mm x 25mm
UCT module weight: 0.2kg
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Operating humidity: 0-80% non condensing

Package Contents

1x USB Cable Test module (UCT)
