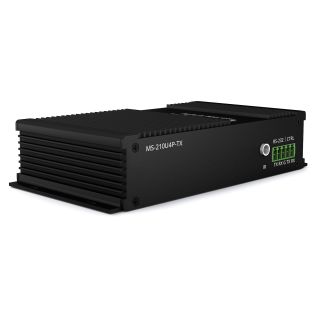

MS-210U4P - HDBaseT 2.0 KVM Extender Set mit 4x USB

MS-210U4P - HDBaseT 2.0 KVM Extender Set mit 4x USB

Artikelnummer: MS-210U4P
HAN: MS-210U4P
Kategorie: HDBaseT
Hersteller: MSolutions

HDBaseT Extender Set – 4K to 40m (10G), 70m @ 1080p. PoC, USB 2.0 (x4), one-way analogue audio pass-through, RS-232 pass through, with single channel bi-directional IR. HDCP2.2 compliant

423,75 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

The MSolutions MS-210U4P is a 4K HDMI / KVM HDBaseT extender set allowing for uncompressed video and audio to be extended up to 40m at 4K UHD (10.2Gbps), and 70m at 1080p or lower resolutions. 4x independent USB2.0 channels allow for bi-directional USB client to host connectivity for connectivity of various peripherals in a variety of commercial applications. The unit also features RS-232 serial pass-through, single channel IR pass-through from TX to RX, or RX to TX, and separate analogue 2ch audio pass-through (RX to TX). Bi-directional PoC (Power over Cable) allows for either the TX or RX to be powered.

Key Features

Uncompressed extension of HDMI at resolutions up to 4K 60Hz 4:2:0 / 4K 30Hz 4:4:4 using HDBaseT technology
4K signal extension to 40m over single CAT including HDR formats suppported under 10.2Gbps
1080p or lower video resolutions up to 70m over single CAT
Supports HDMI pass-through all known HDMI audio formats including Dolby Atmos / DTS:X
Bi-directional 12V PoC (Power over Cable)
4 x USB2.0 channels for KVM connectivity of multiple USB devices across the link – max 240Mbps data rate pass-through (combined)
Flexible USB extension for: USB2.0 cameras, touch screens, smart boards, hard drivers, games controllers, USB audio devices, printers, scanners and HID’s (mouse or keyboard)
Independent 1-way analogue audio pass-through (RX to TX)
Bi-directional RS-232 serial pass through
Single channel 5V IR pass-through (TX to RX, or, RX to TX)
CEC (Consumer Electronics Control) pass through
HDCP2.2 compliant

Specifications

Video connectivity TX: 1x HDMI input (female), 1x HDBaseT output (RJ45 keystone)
Video connectivity RX: 1x HDBaseT input (RJ45 keystone), 1x HDMI output (female)
Analogue audio connectivity: 1x Analogue audio in (RX), 1x Analogue audio out (TX) – 3.5mm jack (female)
USB connectivity: RX – 4x USB Type A (female); TX – 1x Micro-USB (female)
IR connectivity (TX & RX): 1x 3.5mm stereo jack (female) – IR TX or IR RX
RS-232 connectivity (TX & RX): 1x 5-pin phoenix connector, block included – serial pass-through and f/w upgrade
Power supply: 1x 12V 2A DC
Power consumption: 13.5W
Individual unit dimensions (W x D x H): 135 x 70 x 31mm
Individual unit weight: 0.2kg
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Operating humidity: 0-80% non condensing

Package Contents

1 x MS-210U4P transmitter
1 x MS-210U4P receiver
1 x 12V 2A power supply with US,
UK & EU territory clips
1 x IR receiver (5V) with 1m cable
1 x IR transmitter (5V) with 1m cable
1 x User Guide
USB Type-A to Micro USB cable
