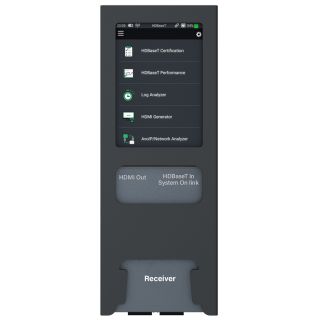

MS-TestPro 106 (MS106B) – Battery based, Wi-Fi Interface, HDMI Pattern Generator 4K 4:4:4 60

MS-TestPro 106 (MS106B) – Battery based, Wi-Fi Interface, HDMI Pattern Generator 4K 4:4:4 60

Artikelnummer: MS-106B
Kategorie: Test & Troubleshooting
Hersteller: MSolutions

HDBaseT Spec 1.0 Tester – battery powered, WiFi for browser based management, 3.5″ colour touchscreen, HDMI pattern generator, 4K 4:4:4 60, web-GUI

2.745,00 €

exkl. 19% USt. , (Standard)

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

The MS-TestPro MS-106B is the only HDBaseT tester that is all-inclusive, 100% reliable, portable and affordable, making it an indispensable tool for AV installers and integrators. It provides AV professionals with all the information needed while in the field to enable them to verify the integrity and stability of every system tested down to the last detail. Moreover, the MS-TestPro generates a report including all the parameters necessary to certify link quality and status for signals up to 4K Ultra High Definition. The report can then be transferred to a computer, tablet or smartphone for use by both installer and end-user.

Key Features

Effortless and immediate testing of HDBaseT links of distances up to 100m
HDBaseT monitoring and diagnostic functionality for a full overview of the links capability
HDBaseT Spec 1.0 transmitter and receiver modules included
Certifcation for 4K video in seconds
3.5″ colour LCD touch screen with stylus
USB connectivity for downloading of certification reports
Mains or battery powered – up to 4 hours use from a full charge
Log testing of HDBaseT links for up to 24 hours
Free log file analysis from an MSolutions professional
In-built WiFi access point for remote testing capabilities from a mobile device
Integrated HDMI test pattern generator
HDMI EDID analyser
In-built video guide & user manual
IP65 rated shock-proof carry case
Optional extension modules for testing: HDBaseT Spec 2.0, DC Resistance, HDMI Cable, AVoIP networks

Specifications

3.5″ colour touch screen
Video connectivity: 1x HDMI output (female) for HDMI test pattern generation (side of unit)
Audio connectivity: 1x 3.5mm stereo jack for audio test signal (side of unit)
LAN connectivity: 1x RJ45 Ethernet connection (top of unit)
1x TX / RX module slot connected, 1x TX / RX module slot (storage)
4x USB ports for download of firmware / test reports
Charger: 1x 12.6V 3A DC
Power consumption: 7.5W
Unit dimensions (W x D x H): 68mm x 178mm x 78mm
Unit weight: 0.9kg
Carry case dimensions (W x D x H): 250mm x 240mm x 115mm
Carry case weight: 2.2kg
Master carton quantity: 4 units
Operating temperature: 32°F to 104°F (0°C to 40°C)
Storage temperature: -4°F to 140°F (-20°C to 60°C)
Operating humidity: 0-80% non condensing
