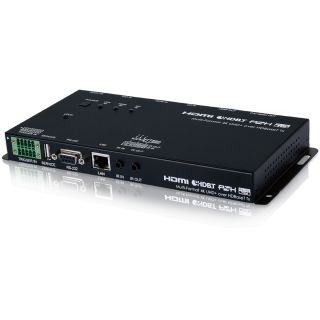

Multi-Format 4K UHD+ over HDBaseT Tx - Cypress CH-2535TX

Multi-Format 4K UHD+ over HDBaseT Tx - Cypress CH-2535TX

Artikelnummer: CH-2535TX
HAN: CH-2535TX
Kategorie: Extenders
Hersteller: Cypress Technology

This new collaboration Transmitter and Receiver system is a convenient turnkey solution for video selection and extension in con ...

663,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

This new collaboration Transmitter and Receiver system is a convenient turnkey solution for video selection and extension in conference rooms, classrooms and showrooms. These units provide not only AV conversion and extension but also an intelligent and easy way to control devices throughout the entire venue. The three most common input interfaces (HDMI, DisplayPort, and VGA) are supported by the Transmitter, providing the ultimate in source compatibility and flexibility. The HDMI and DisplayPort inputs both support resolution/ timing up to a maximum of 4K@30Hz (4:4:4, 8-bit) which is converted, as appropriate, for transmission over HDBaseT. The selected source can be transmitted over Cat.6/7 cable up to 70m (at 4K@60Hz). The Receiver can scale the HDBaseT video source, or local HDMI input, to match the connected display’s resolution requirements.

The Transmitter also provides an interface for a remote control keypad, or trigger interface, which can be easily installed within a podium or within a table in a conference room or classroom. This interface can allow the user to control a wide range of devices by activating single commands or complex macros and sending commands out over the local network. In order to provide a more robust selection of control options. The unit is controllable via top panel controls (with OSD), WebGUI, Telnet, and RS-232.

External analog stereo audio embedding/de-embedding support
Support for automatic input detection and automatic switching on source loss
Supports controlling a wide variety of conference room equipment such as media players, projectors, projection screens, curtains, etc. via Ethernet, RS-232, IR, or relay (method is device dependent)
Support for IR code learning as well as IR broadcasting
Supports Telnet for both client and server functionality
Control system supports defining up to 16 devices to simplify control and management of controlled devices within the system
Integrated macro command lists support activating multiple events from a single button press (up to 16 actions per macro)
Battery backed up RTC (Real Time Clock) to control scheduled macro execution and program event activation

Interfaces
Input Port	1 HDMI(Type-A) 1 DisplayPort(Female) 1 VGA(HD-15) 1 Stereo Audio(3.5mm)
Output Port	1 HDMI(Type-A) 1 HDBaesT(Cat.5e/6/7)
Control I/O	1 IR Blaster (3.5mm) 1 IR Extender (3.5mm) 1 RS-232 (9-pin D-sub) 1 LAN (RJ45) 8 Trigger (Terminal Block)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP 2.X
Input Signal Types	4K@60 8bit YUV 4:4:4
Output Signal Type	4K@60 8bit YUV 4:2:0

Resolutions
Maximum Input	HDMI	4096×2160p@60
	DisplayPort	4096×2160p@60
	VGA	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60
	Cat.5e/6/7	4096×2160p@30

Power
Power Supply	48V PoH (Power over HDBaseT)
Power Consumption	12W

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive]
Weight	420g

Field Firmware Update
Interface	USB, WebGUI

Ordering Information
Model No.	Product Description
CH-2535TX	Multi-Format 4K UHD+ over HDBaseT Tx
CH-2535RX	HDBaseT Rx & 4K UHD+ to HDMI Scaler
