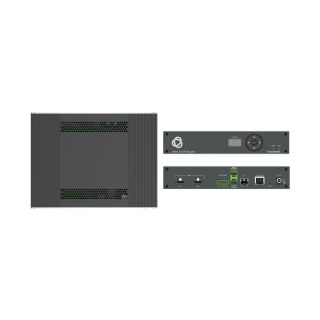

Open-standard low latency AVoIP 4K@60Hz streaming decoder with audio

Open-standard low latency AVoIP 4K@60Hz streaming decoder with audio

Artikelnummer: KRA-60-80585090
EAN: 7291063098711
HAN: KDS-100DEC
Kategorie: AVoIP Extender
Hersteller: Kramer

1.566,25 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 14 Tagen.
Lieferzeit: ca. 3 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

KDS−100DEC decoder is an advanced receiver for streamed 4K@60Hz video signals via Ethernet over copper or fiber cables. It also decodes the RS−232 or CEC signals transmitted over IP network from the encoder.

Robust Solution for Large–Scale Installations — Provides an optimized solution for large Education and Enterprise campuses, as well as Defense and Homeland Security Facilities, with support for numerous simultaneous video flows and built–in advanced management capabilities.
Highly Scalable — The KDS–100 line supports up to 1000 video sources, suited for large–scale installations.
Built–in Resilient Security Features — Preserves the integrity, availability and confidentiality of the IT network via a highly secured and resilient AVoIP solution.
KDS–100 devices comply with IT security requirements, including 802.1x and HTTPS/TLS.
Simple Planning and Rollout — KDS–100 is highly bandwidth–efficient, thus enabling cost–efficient hybrid use of the existing 1GE IT network. There is no need to deal with complex IP packets prioritization or switching settings. Offering easy management, high reliability, and adjustable bandwidth control, KDS–100 is extremely cost–effective to maintain over the long term.
Alternative Sources/Destinations — An HDMI loop–through port on the encoder side and an HDMI input port on the decoder, as well as embedding and de–embedding analog audio to the IP stream.

Eingang

Ausgang

Datenports

1 Ethernet: On an RJ–45 Connection
1 RS-232: On a 3–pin terminal block connector for control
1 RS-232: On a 3–pin terminal block connector for data
1 Fiber on an LC Connector: Standard: 1000BASE–SX, 1000BASE–LX

Network

Video

Video Streaming

Open Standard: H.264 and H.265
Maximum Streaming Resolution: 3840x2160@60Hz 4:2:2
Bit Rate Range: 1–60 Mbps
Latency: Low latency, about 40 msec
Scaler: Yes

Resolution

Security

Bedienoberfläche

Indicators: LINK, NET and ON LEDs, front panel channel number display
Rear Panel: Factory reset button
Controls: Embedded web pages, P3K API commands via Ethernet, front panel channel selection buttons

Energiebedarf

PoE+: IEEE 802.3at on LAN (PoE) port
Optional Power Adapter: 12V DC, 5A. Unit has to be supplied by a power supply specified as a Limited Power Source (LPS) or PS2 source of supply
Consumption: 13.6W

Umweltbedingungen

Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing
Storage Temperature: –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing
Humidity: 10% to 90%, non–condensing

General

Product Dimensions: 21.5cm x 16.3cm x 4.4cm (8.5" x 6.4" x 1.72" ) W, D, H
Shipping Dimensions: 34.5cm x 16.5cm x 5.2cm (13.6" x 6.5" x 2.05" ) W, D, H
Product Weight: 0.9kg (2lbs) approx
Shipping Weight: 1.4kg (3.1lbs) approx

Produktabmessung

21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H

Produktgewicht

Versandabmessung

34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

Versandgewicht
