Opticis DVFX-100-RX Ver. 2.0 - DVI-D über Glasfaser (1 SC Multimode) Empfänger

Opticis DVFX-100-RX Ver. 2.0 - DVI-D über Glasfaser (1 SC Multimode) Empfänger

Artikelnummer: DVFX-100-RX Ver. 2.0
Kategorie: DVI
Hersteller: Opticis

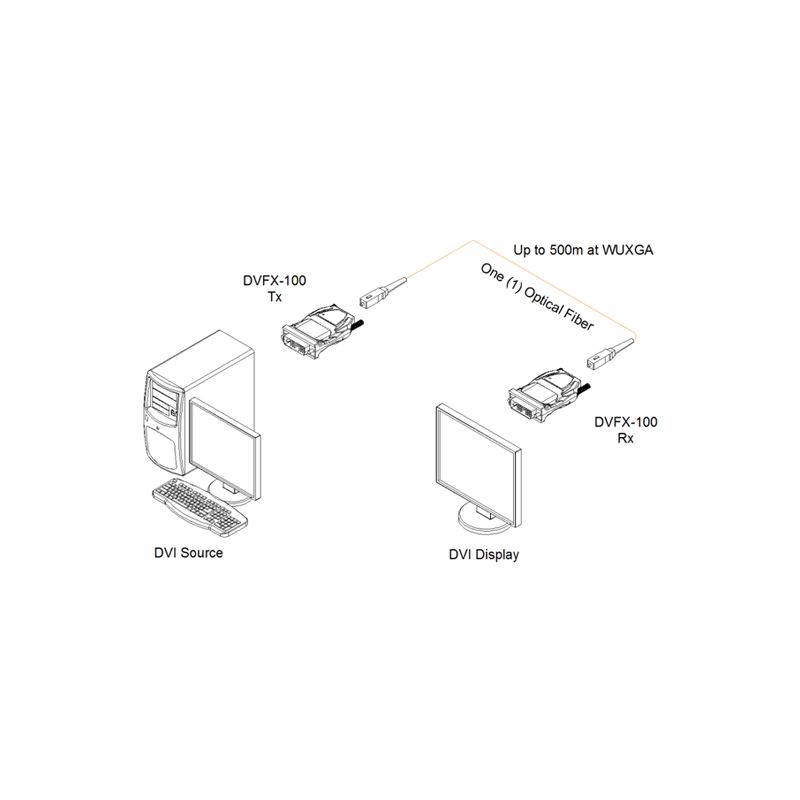

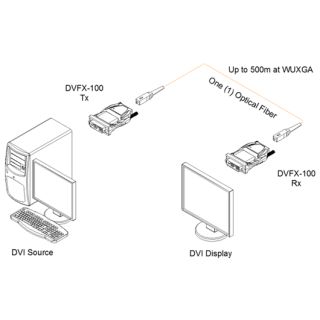

With OPTICIS leading-edge fiber-optic technology, DVFX-100-TR is capable of driving uncompressed WUXGA (1920x1200) 60Hz and even more up to 2K resolution of DVI signal up to 500m (1640ft) over one(1) SC multi-mode fiber.

400,00 €

exkl. 19% USt. , (Standard)

Knapper Lagerbestand
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

The detachable DVI extender, DVFX-100-TR offers easy connection to your existing system with minimum efforts and no modification, since it is designed compactly enough and with all industry standard connectors. The metallic die-casting enclosure gives reliable installation, excellent EMI shields and heat dissipation in harsh and noisy environments.

For better installation and flexibility, it features patent pending Self-EDID management, reading and restoring of the information by just plugging to the display. It is also certified with IEC60601-1, 60601-1-2 for medical uses and FCC/CE and Class 3 LASER Eye Safety for various applications.

•   Extremely small and solid aluminium enclosure
•   Easy and simple installation with a single fiber
•   Reads and restores the targeted EDID in the transmitter (Self-EDID)
•   Provides Power, Status (Signal transmission in transmitter and signal detection in receiver) LED indicators
•   Auto-power switching
•   Supports up to WUXGA(1920x1200), 60Hz and even more up to 2K resolution
•   Supports bit rate up to 2.25Gbps, which covers 36 bits color depth of 1080p
•   Uncompressed DVI signal up to 500m (1640ft) over one (1) multi-mode fiber with SC terminated connector
•   Operating temperature: 0 ~ 50?
•   Storage temperature: -30~70?
•   Input power: +5V 1A
•   Size (WDH): 39 x 56 x 14.6mm

Netzteil:	Externes Netzteil
Spannungsversorgung:	5 V DC
HDCP:	nicht HDCP konform
Signalausgänge:	DVI-D (Single-Link)
Typ:	Empfänger
Übertragungsprotokoll:	Proprietär
Service:	1 Jahr Bring-In-Service
(Maximale) Kabellänge:	500 m
Signaleingänge:	1 SC Multimode Glasfaser
