Opticis M1-201DA-TX - Two (2) fiber Detachable DVI Module Sender

Opticis M1-201DA-TX - Two (2) fiber Detachable DVI Module Sender

Artikelnummer: M1-201DA-TX
HAN: M1-201DA-TX
Kategorie: DVI
Hersteller: Opticis

The detachable DVI extender, M1-201DA-TR offers easy connection to your existing system with minimum efforts and no modification, since it is designed compactly enough and with all industry standard connectors. The metallic die-casting enclosure gives reliable installation, excellent EMI shields and heat dissipation in harsh and noisy environments.

300,00 €

exkl. 19% USt. ,

Knapper Lagerbestand
Lieferzeit: 1 - 3 Werktage (DE - Ausland abweichend)

Beschreibung
Frage zum Artikel

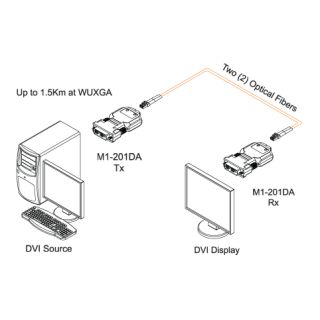

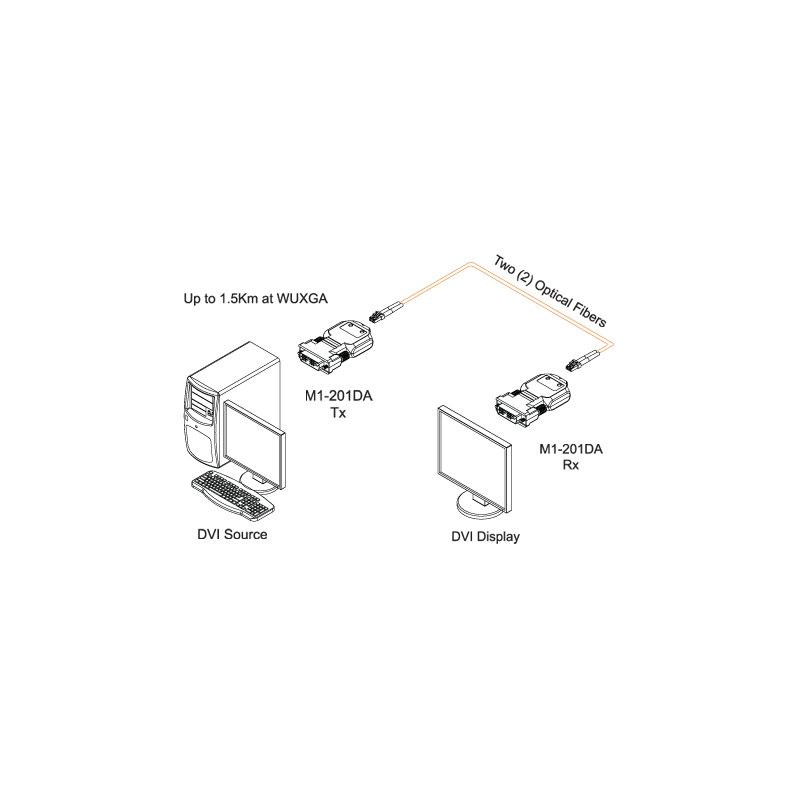

M1-201DA-TR is capable of driving uncompressed WUXGA (1920x1200) 60Hz DVI signal up to 1,500m (4920feet) over a duplex LC single-mode or 500m (1640feet) over a duplex LC multi-mode fiber. The key features of M1-201DA-TR is, by using an optical passive splitter (OPS-216L), one (1) signal from transmitter can be copied up to 16 times and it gives you a cost effective and space saving installation for various application.

For better installation flexibility, it features patent pending Self-EDID management, reading and restoring by just plugging to the display. It is also certified with IEC/EN 60601-1-2, FCC/CE and Class 1 LASER Eye Safety for various applications.

•   Small and solid aluminium enclosure
•   Easy and simple installation
•   Copies one (1) signal up to 16 times with optical passive splitter (Securing the distance without any signal loss)
•   Reads and restores the targeted EDID in the transmitter (Self-EDID)
•   Provides Power, Status (Signal transmission in transmitter and signal detection in receiver) LED indicators
•   Auto-power switching
•   Supports up to WUXGA (1920x1200), 60Hz
•   Supports bit rate up to 1.65Gbps/ch
•   Uncompressed DVI signal up to 1,500m (4,920feet) over a duplex single-mode fiber or 500m (1,640feet) over a duplex multi-mode fiber with LC terminated connector
•   Operating temperature: 0 ~ 50?
•   Storage temperature: -30 ~ 70?
•   Input power: +5V 1A
•   Size (WDH): 39 x 69 x 15mm

Spannungsversorgung:	5 V DC 230 V AC
HDCP:	nicht HDCP konform
Signalausgänge:	DVI-D (Single-Link)
Auflösung (maximal/nativ):	2MP Full HD (1.920 x 1.080)
Signaleingänge:	DVI-D (Single-Link)
Übertragungsprotokoll:	Proprietär
Service:	1 Jahr Bring-In-Service
(Maximale) Kabellänge:	500 m
