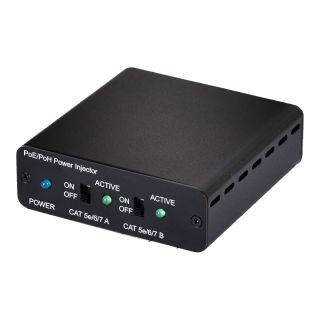

PoE/PoH Power Injector - Cypress CH-POE

Artikelnummer: CH-POE
HAN: CH-POE
Kategorie: Power Injector
Hersteller: Cypress Technology

HDBaseT has a large share in the transmission market of uncompressed images. In consideration of simplified installation, we des ...

181,00 €

exkl. 19% USt. ,

Muss bestellt werden. Ab Bestellung lieferbar in 35 Tagen.
Lieferzeit: ca. 6 Wochen (DE - Ausland abweichend)

Stk

Beschreibung
Frage zum Artikel

HDBaseT has a large share in the transmission market of uncompressed images. In consideration of simplified installation, we designed and manufactured CH-POE products, allowing SI to simplify installation complexity and improve the practicality of HDBaseT products. This Power Over Ethernet (PoE) injector is designed to easily deliver power to HDBaseT products through Ethernet cables using standard IEEE 802.3af Power over Ethernet. The CHPOE can send power only in the required direction by the two power switches, it also allows to route powers to up-stream and down-stream and can be operated simultaneously. The power supply is a cost saving equipment and can be conveniently installed anywhere when used with HDBsaeT-equipped products.

Supports DC 48V to products using IEEE 802.3af Power over Ethernet
Supports power over Ethernet with a distance of up to 100 meters
Features power switches to selectively the power direction
Supports interoperable powered devices (PD) and power sourcing equipment (PSE)
Supports 10.2 Gbp bandwidth, 4K ultra-high resolutions signals and multichannel audio formats

Interfaces
Input Port	1 CAT5e/6/7 (RJ45)
Output Port	1 CAT5e/6/7 (RJ45)

Video
HDMI Compliance	2.x
Input Signal Type	4096x2160p@60 8bit YUV 4:2:0
Output Signal Type	4096x2160p@60 8bit YUV 4:2:0

Resolutions
Maximum Input	HDBaseT	4096×2160p@60 YUV 4:2:0
Maximum Output	HDBaseT	4096×2160p@60 YUV 4:2:0

Power
Power Supply	DC 48V/0.83A (Locking)
Power Consumption	10.6w

Enclosure
Chassis Material	Metal (Alumium)
Chassis Color	Black
Dimensions (W×H×D)	71mm×72mm×23mm [Case Only] 71mm×76mm×23mm [All Inclusive]
Weight	130g

Ordering Information
Model No.	Product Description
CH-POE	PoE/PoH Power Injector
CH-2537TXWPUS	UHD+ HDMI/VGA over HDBaseT Wallplate Switcher with Signal Event Automation (1 Gang US)
CH-2538TXPLWPKD	UHD+ HDMI/VGA over HDBaseT Wallplate Switcher with PoH (PD) (2 Gang UK)
